Cloud House



Location Toft Green, Staffordshire

Client Private Client

Scope Alterations and Extension to a Listed Building

Status Completed 2021

Planning Authority Staffordshire Moorlands

A Grade 2 listed farmhouse before development, removing ad-hoc extensions and adding a new single storey low pitched extension accommodating a kitchen, dining space and office for farm use.

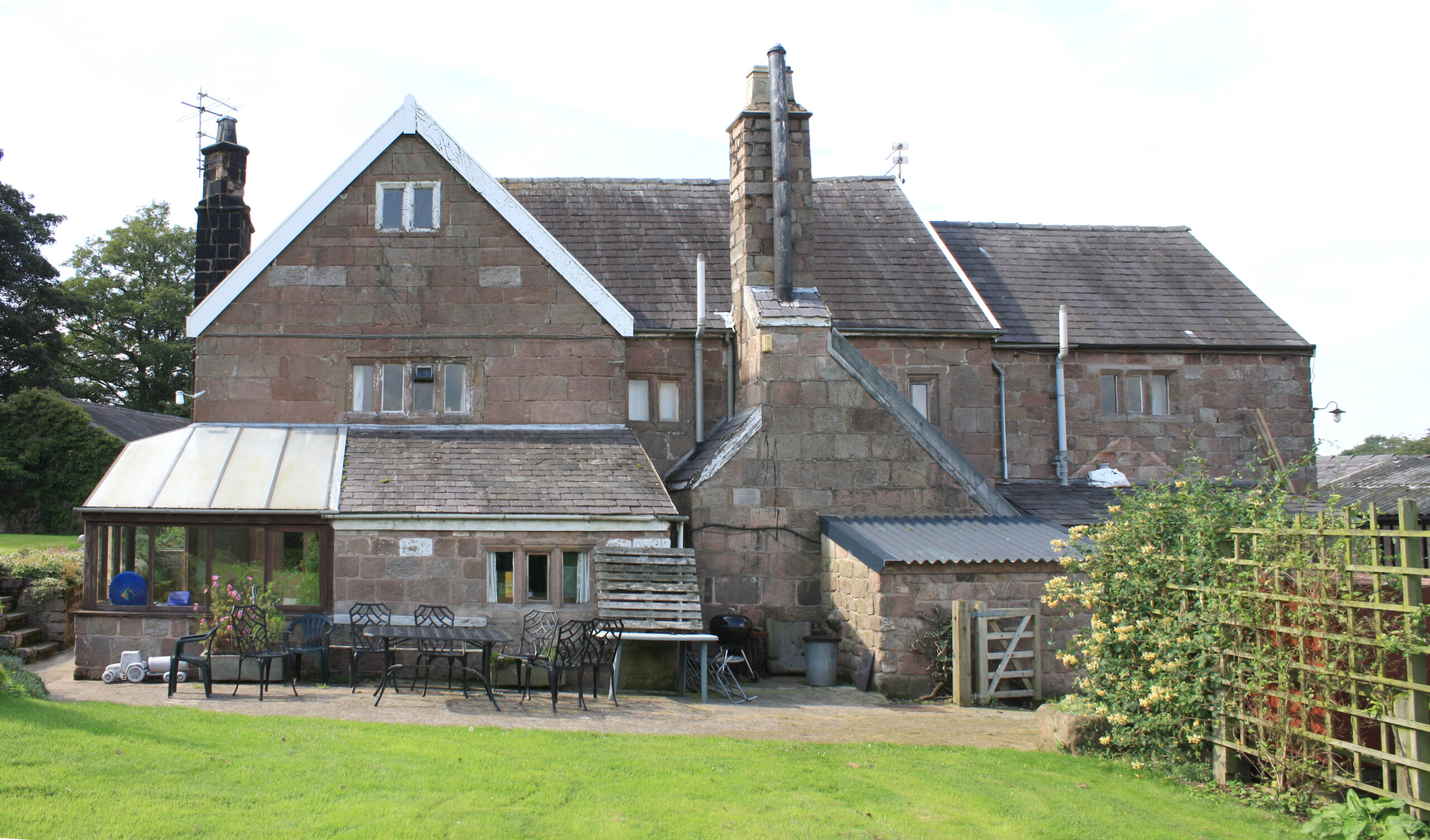

Before

Dating from the 1500s, Cloud House Farm is a working dairy farm near Congleton operated by the family for five generations. Hayes and Partners obtained planning and listed building consent for alterations and extensions to a Grade II listed farmhouse to accommodate a young family. The single storey extensions is contemporary in design and accommodates an open plan kitchen/dining space and a brew roof for the farm staff.

The new extension replaced previous ad-hoc forms, with two freestanding smooth ashlar stone walls linked by a low-profile roof.  Junctions with historic fabric are glazed allowing sunlight to fall across the original exposed stone wall, and the extension is transparent so the original house remains visible.

The renovations to the house included the installation of a new biomass heating boiler to provide low-cost sustainable heat to the house, and slim underfloor heating to provide an even low-level heat throughout the house, without needing to amend the historic door openings. All together this provided a home which is now warm and comfortable to live in while adhering to the restrictions imposed by the heritage of the building.

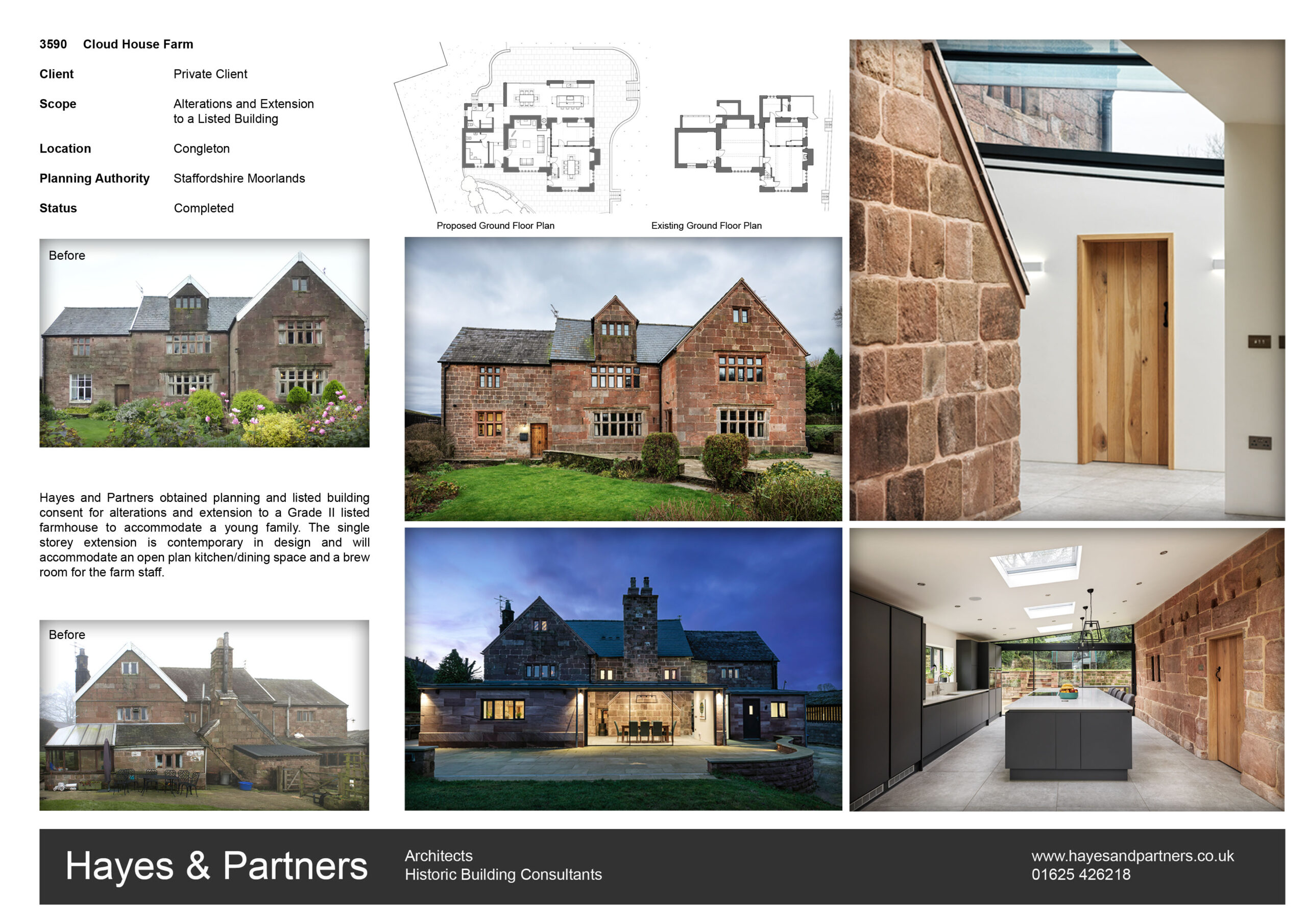

Download Project Sheet

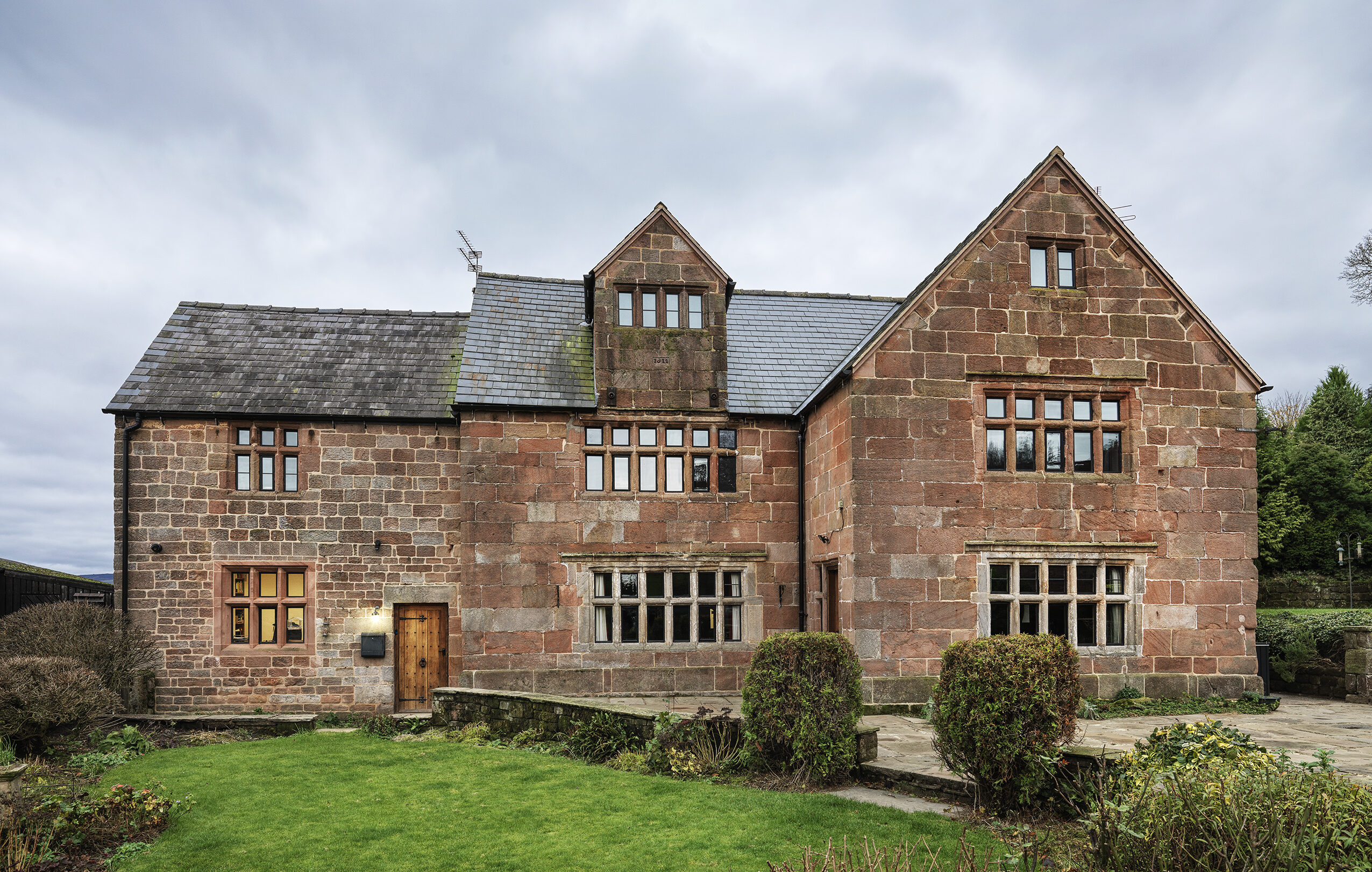

renovated front elevation of a Grade 2 listed farmhouse with new glazing installed to mullion framed windows and roof covering, eaves and verge details renovated to complement the style and importance of the house.
A new rear kitchen and dining extension to a Grade 2 listed farmhouse with single pitch ceiling with rooflights. Exposed original stonework with openings and mullion frames retained.
A new rear extension to a Grade 2 listed farmhouse with exposed original stonework of the farmhouse. Large roof glazing over the entrance hall and surrounding the original chimney. Solid timber panelled doors and architraves

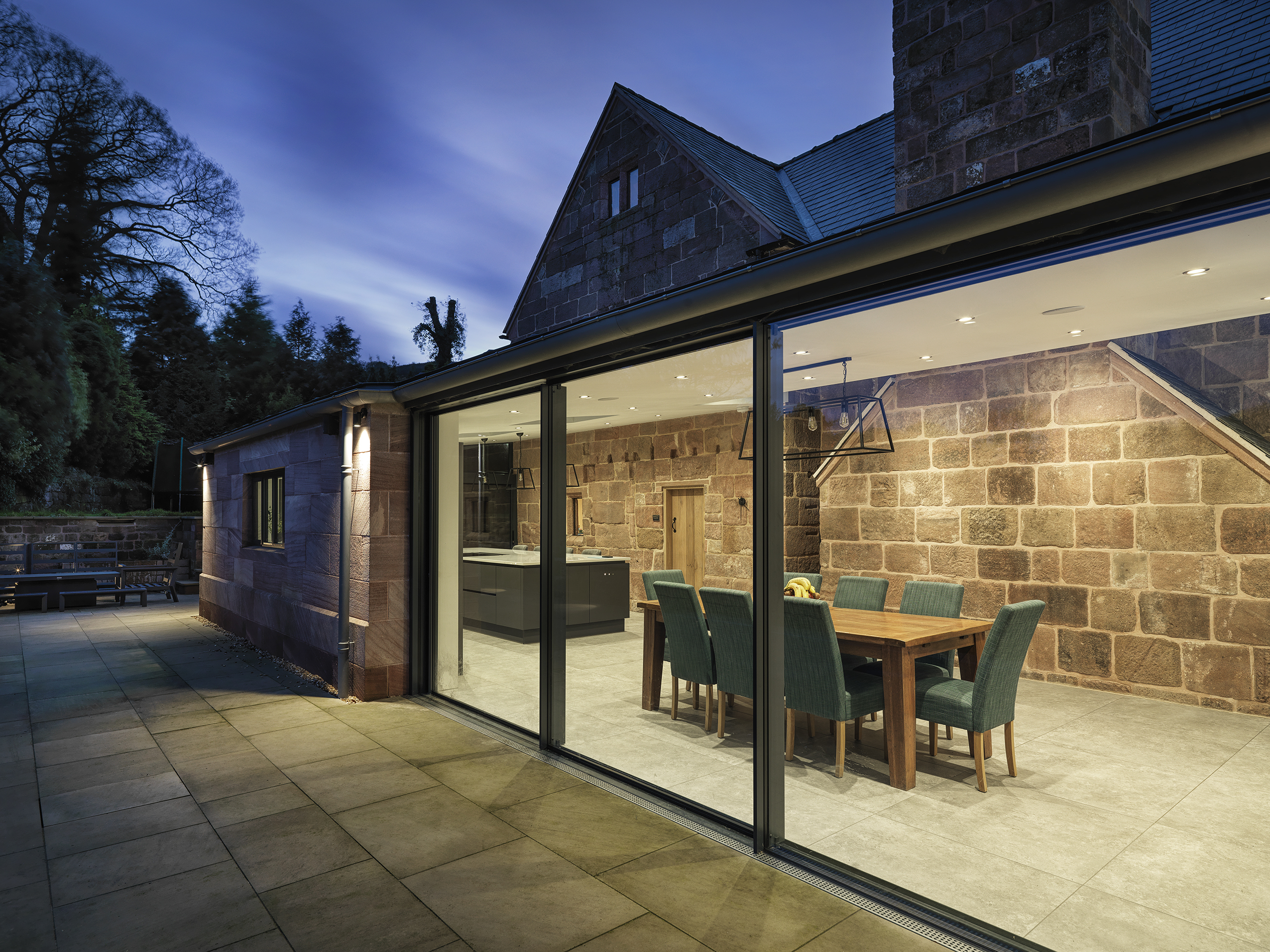

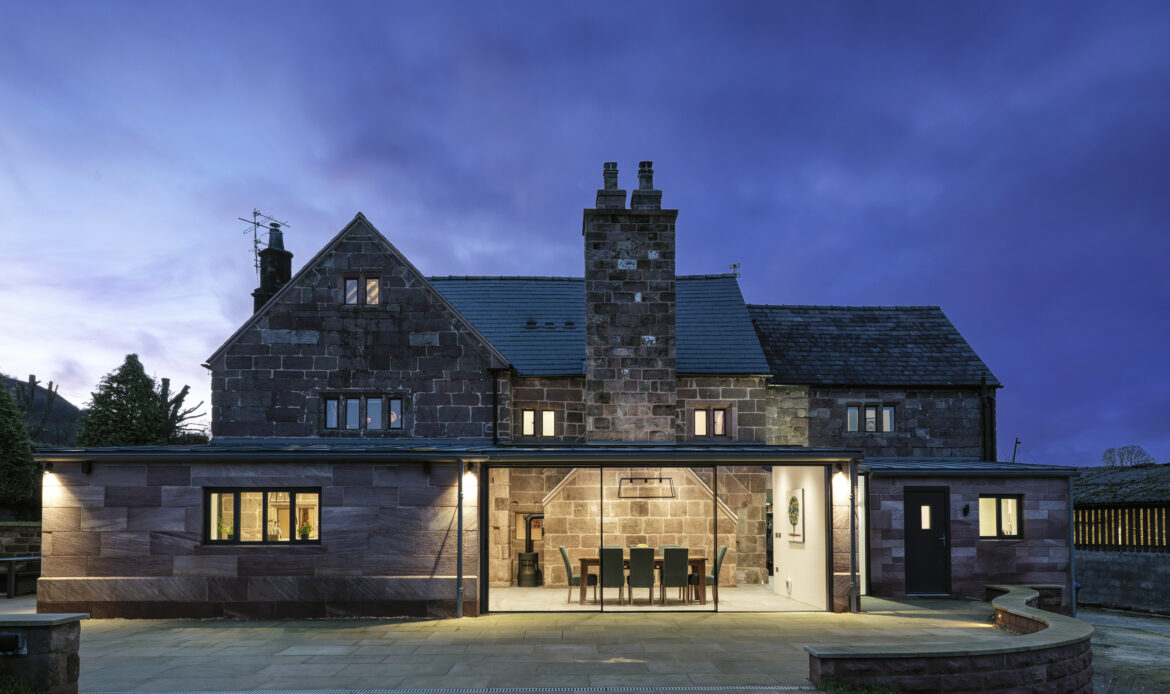

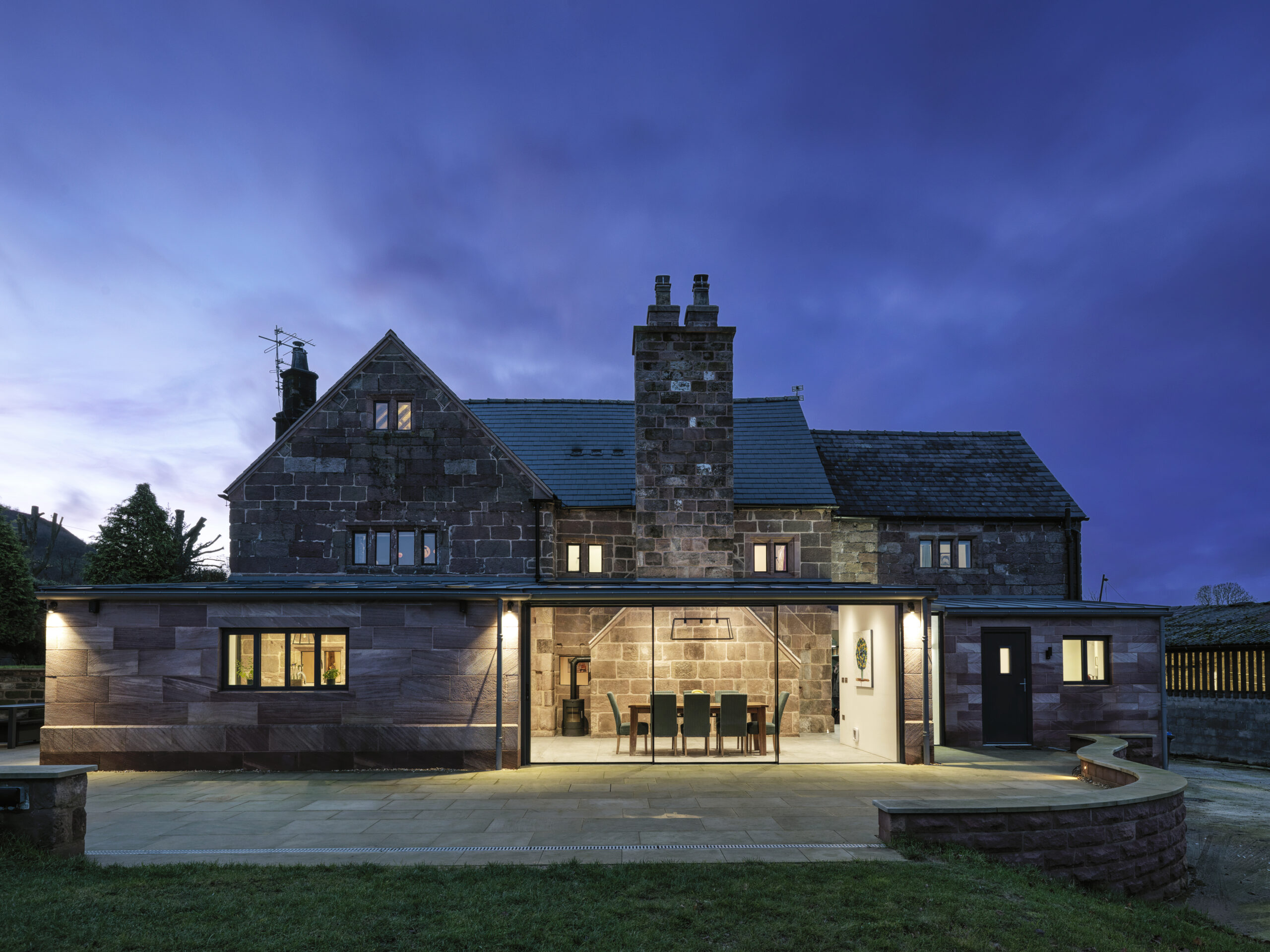

Evening view of a new single storey rear extension to a Grade 2 listed farmhouse with large triple pane full height sliding doors framing views into the space with the renovated stone chimney being highlighted by artificial lighting strategically placed.

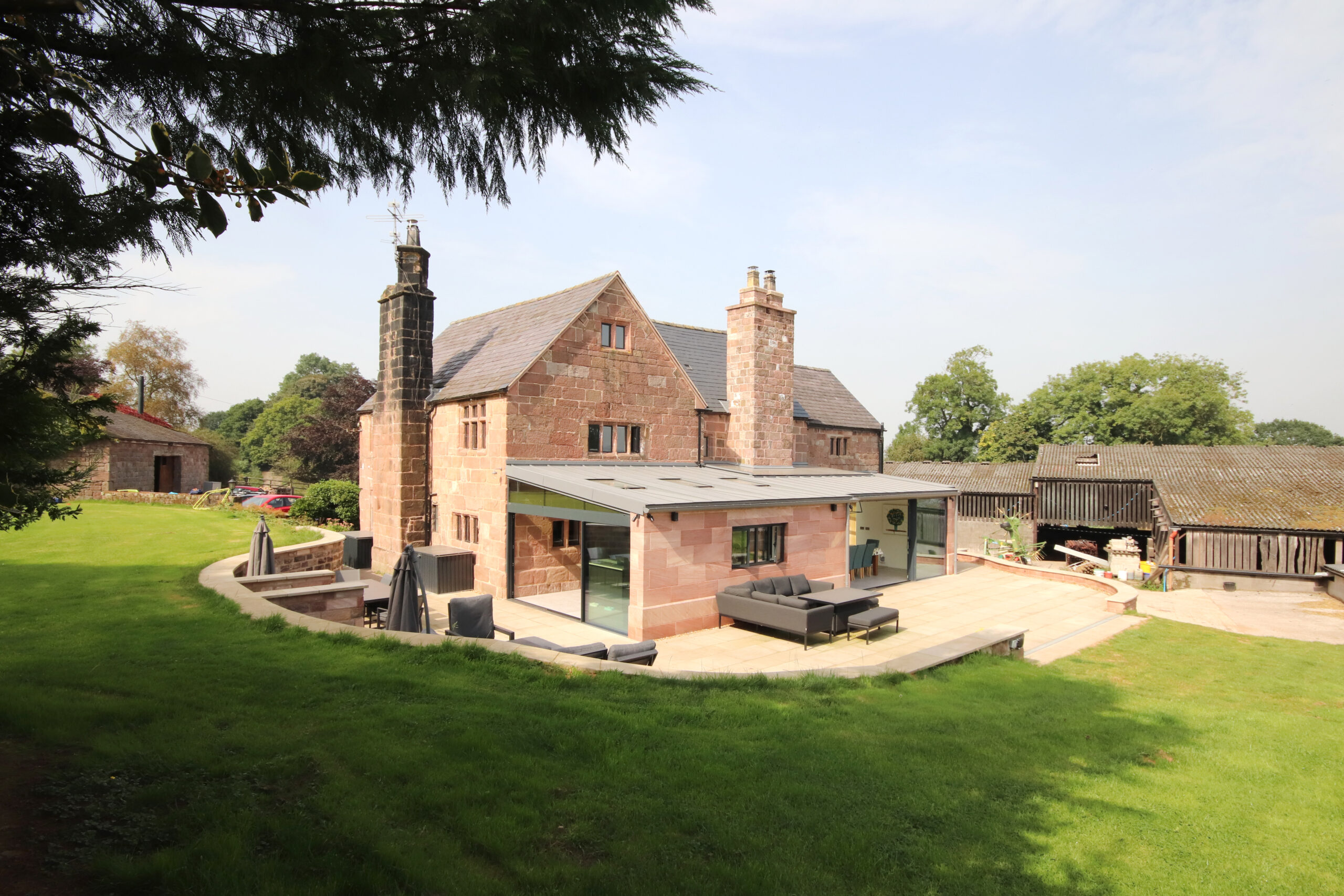

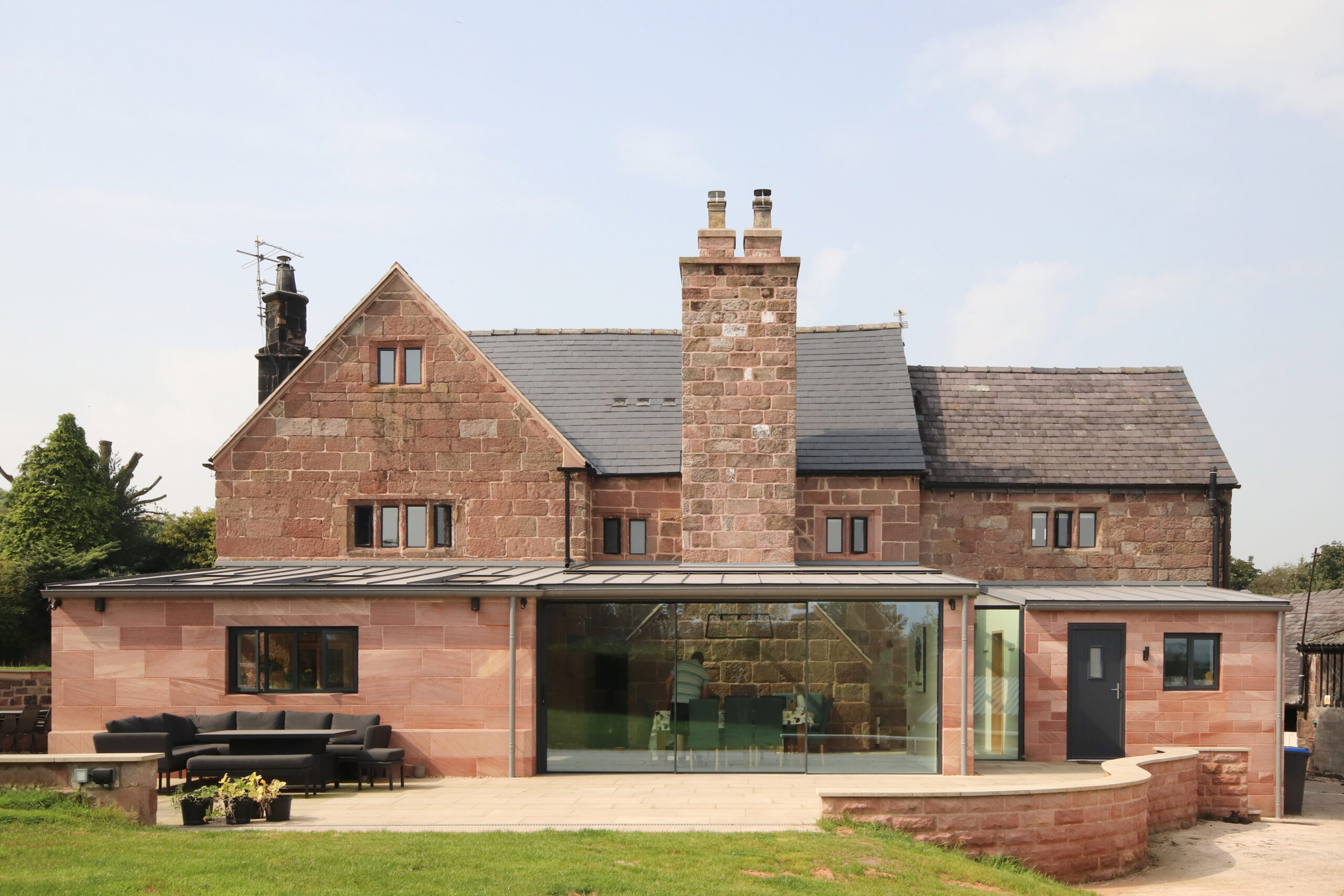

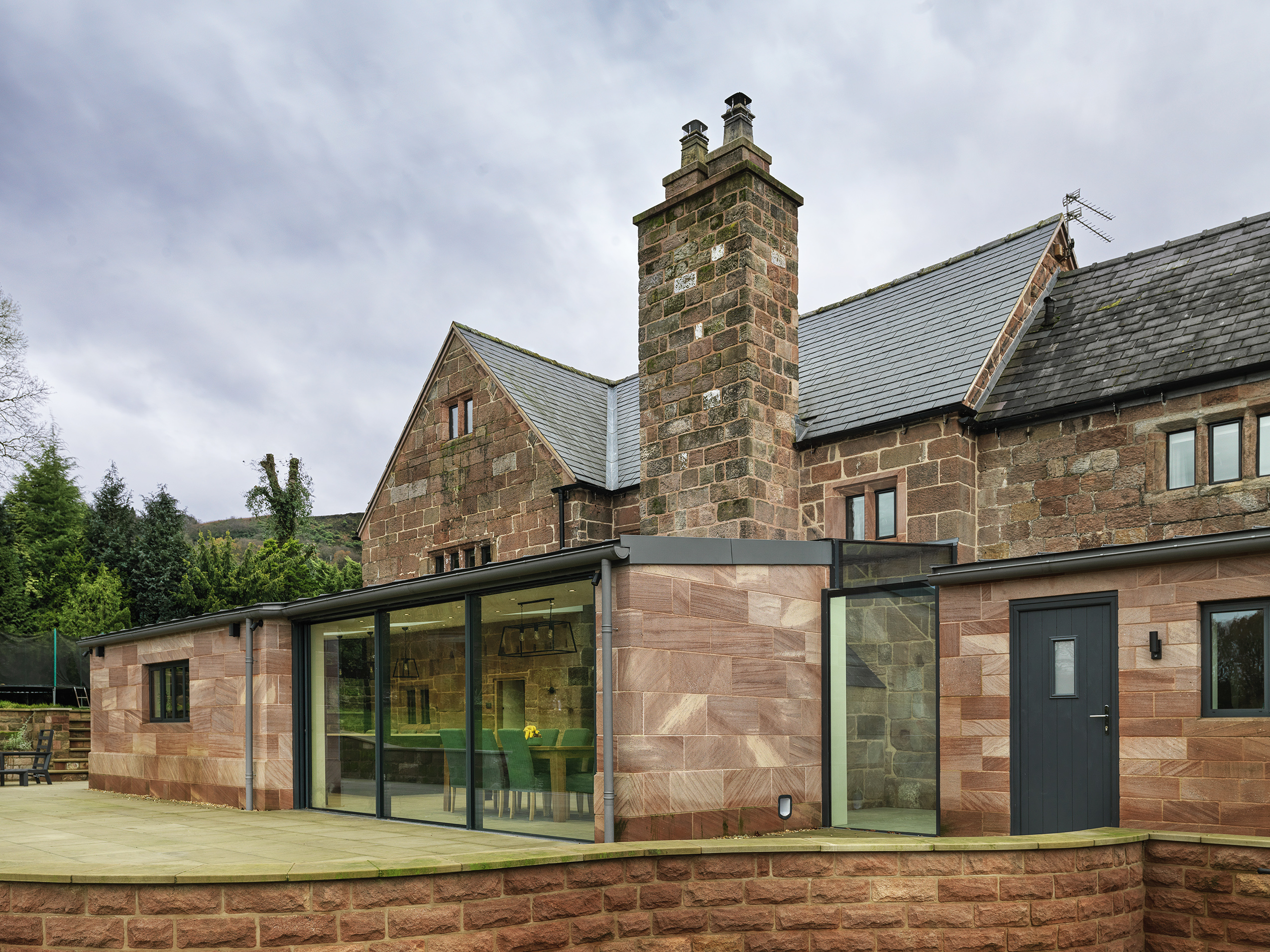

Grade 2 listed stone farmhouse with modern, lean-to extension with low pitched zinc roof. Large glazed openings on the 2 elevations opening onto a new patio area and retaining walls forming the landscaped area beyond

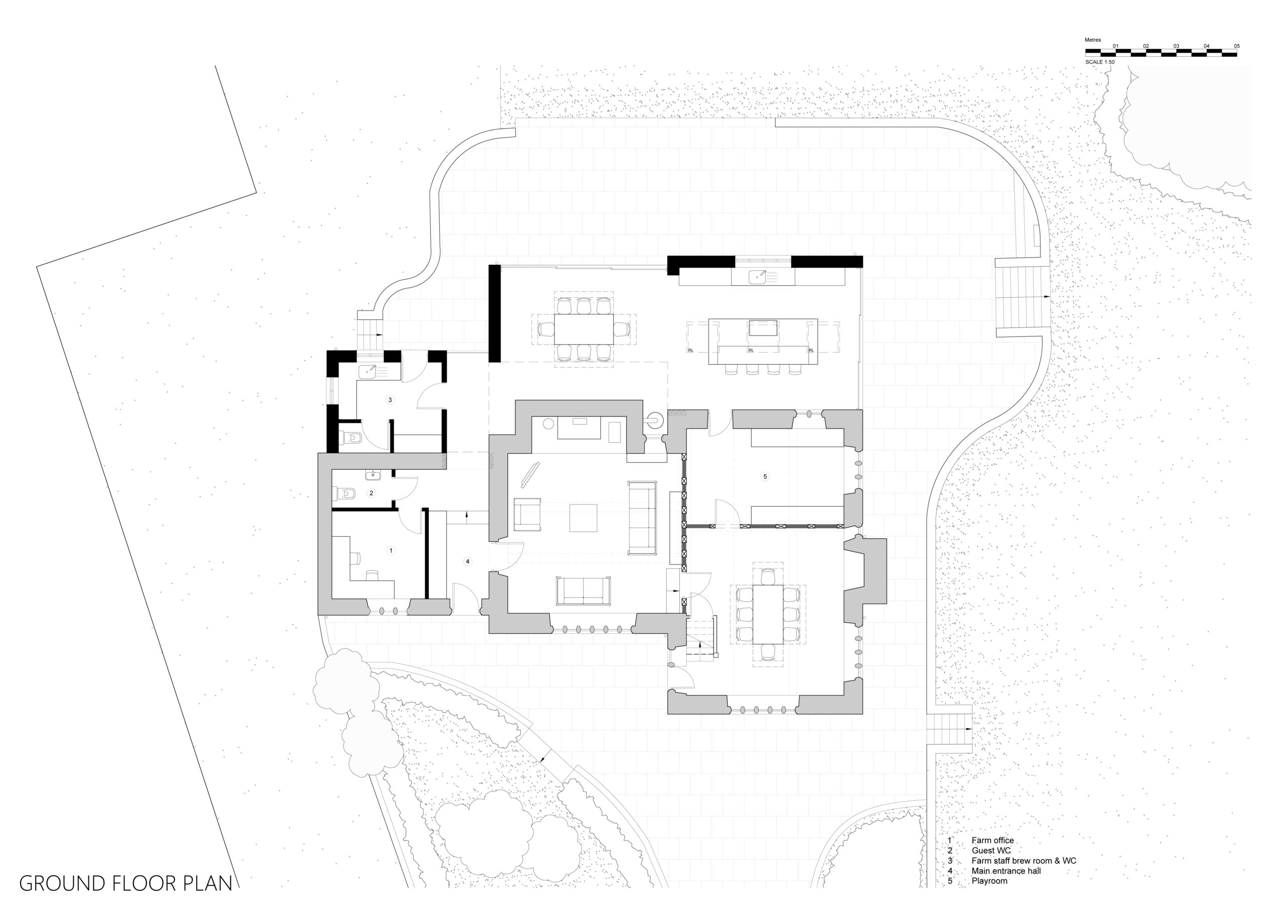

line drawing of ground floor plan of Grade 2 listed stone farmhouse. Black depicting new rear extension with large glazed openings to open plan kitchen and dining area and alterations to the existing farmhouse within

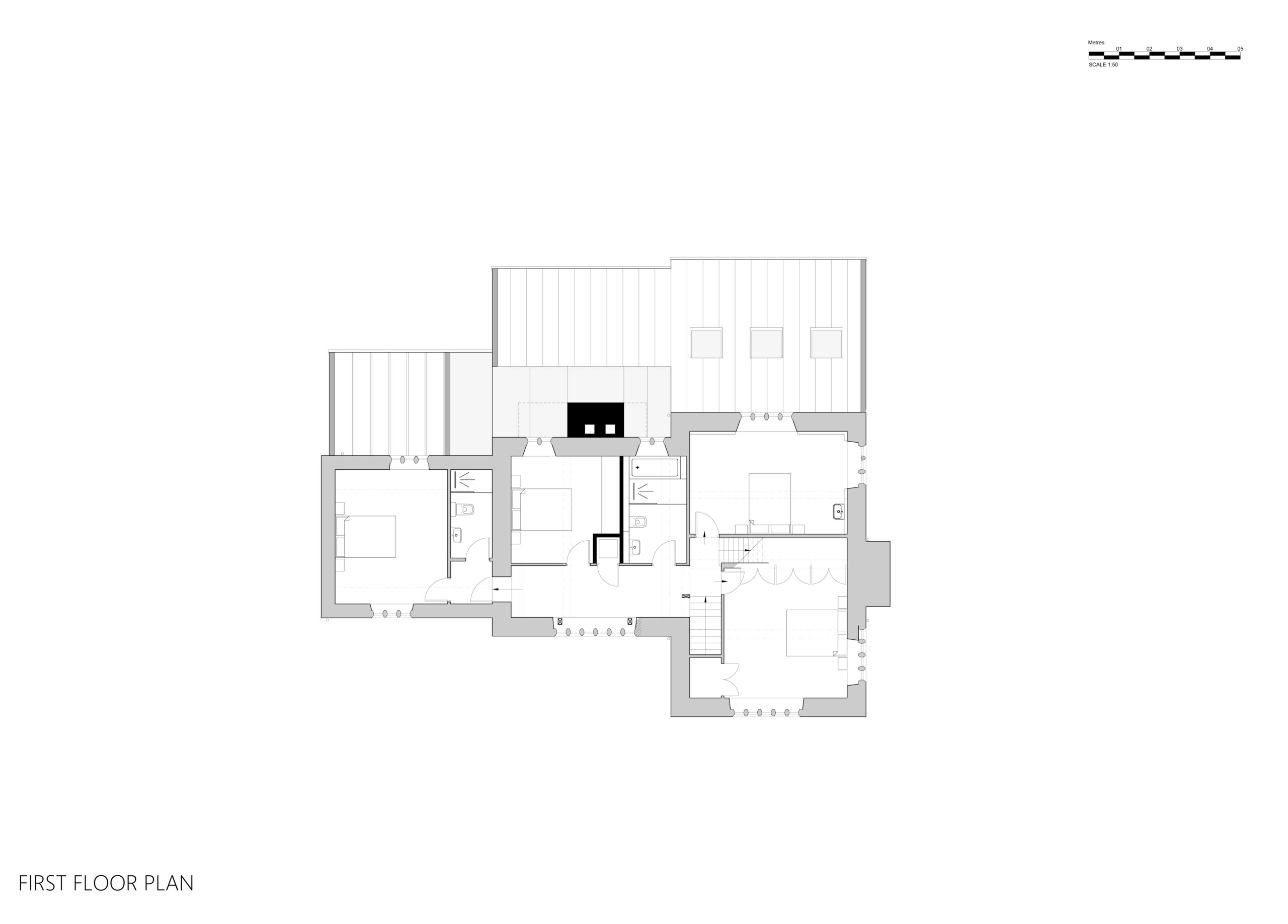

first floor plan of Grade 2 listed stone farmhouse with renovated chimney and new partition wall to provide a new bathroom at first floor. Zinc roof covering to the new rear extension

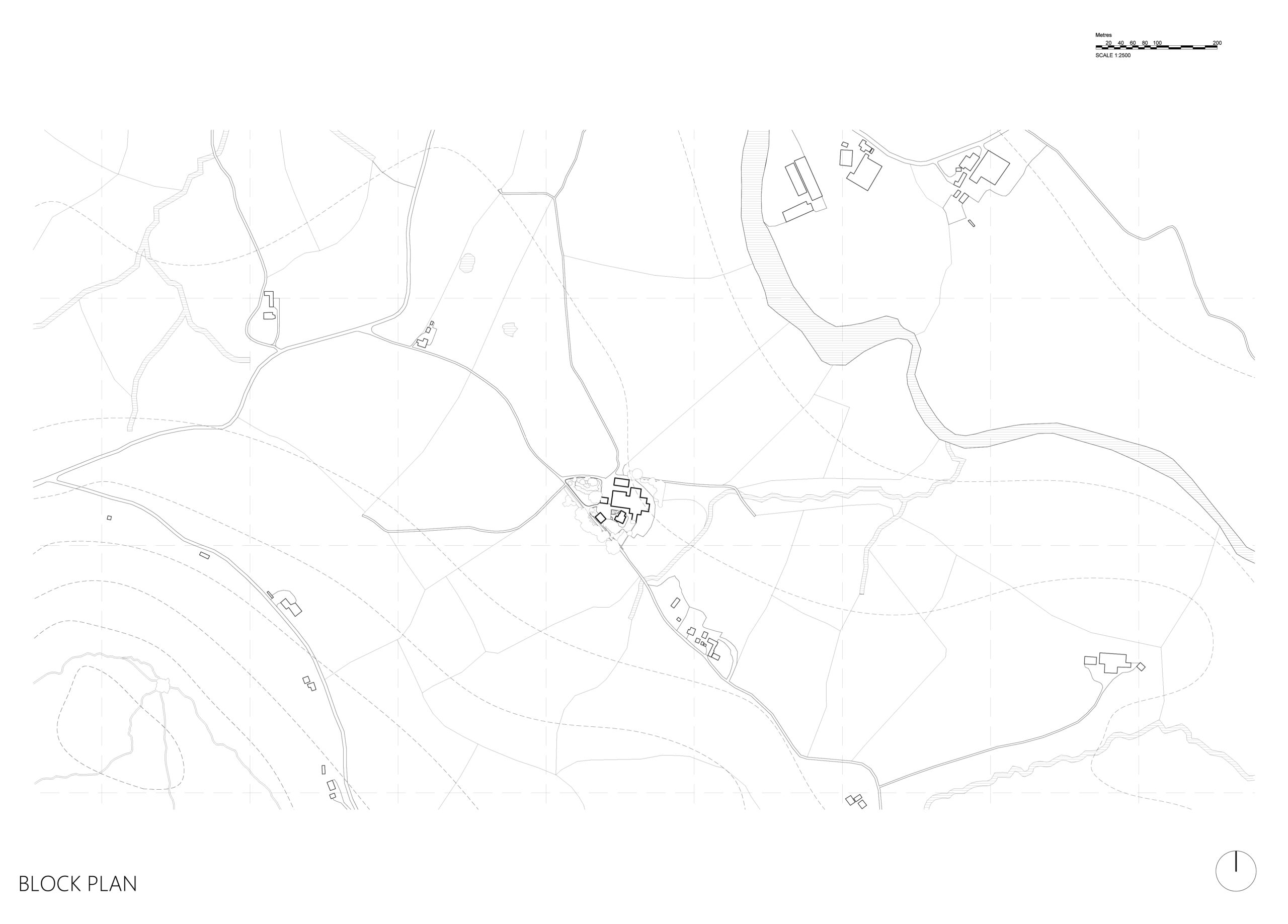

block plan of grade 2 listed farmhouse with views of The Bosley Cloud and in close proximity to the River Dane
new rear extension to grade 2 listed farmhouse with coursed stone and zinc clad roof. Views of the Bosley Cloud

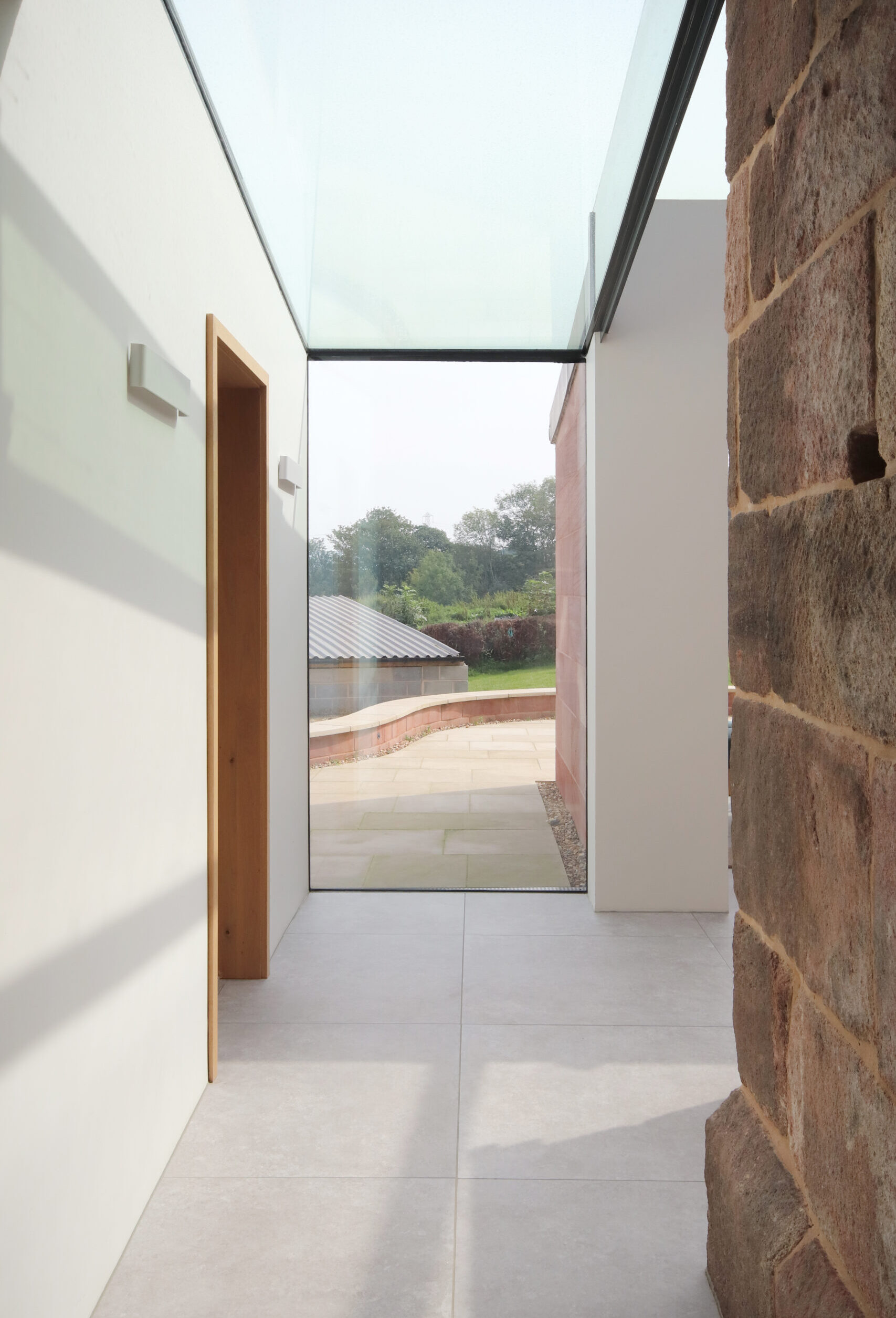

A new rear extension to a Grade 2 listed farmhouse with up and over full height glazing to preserve and highlight the original fabric of the building and highlighting the materiality with natural light and sleek additions. The openings offer views out to the rear garden, agricultural buildings and farmland beyond.

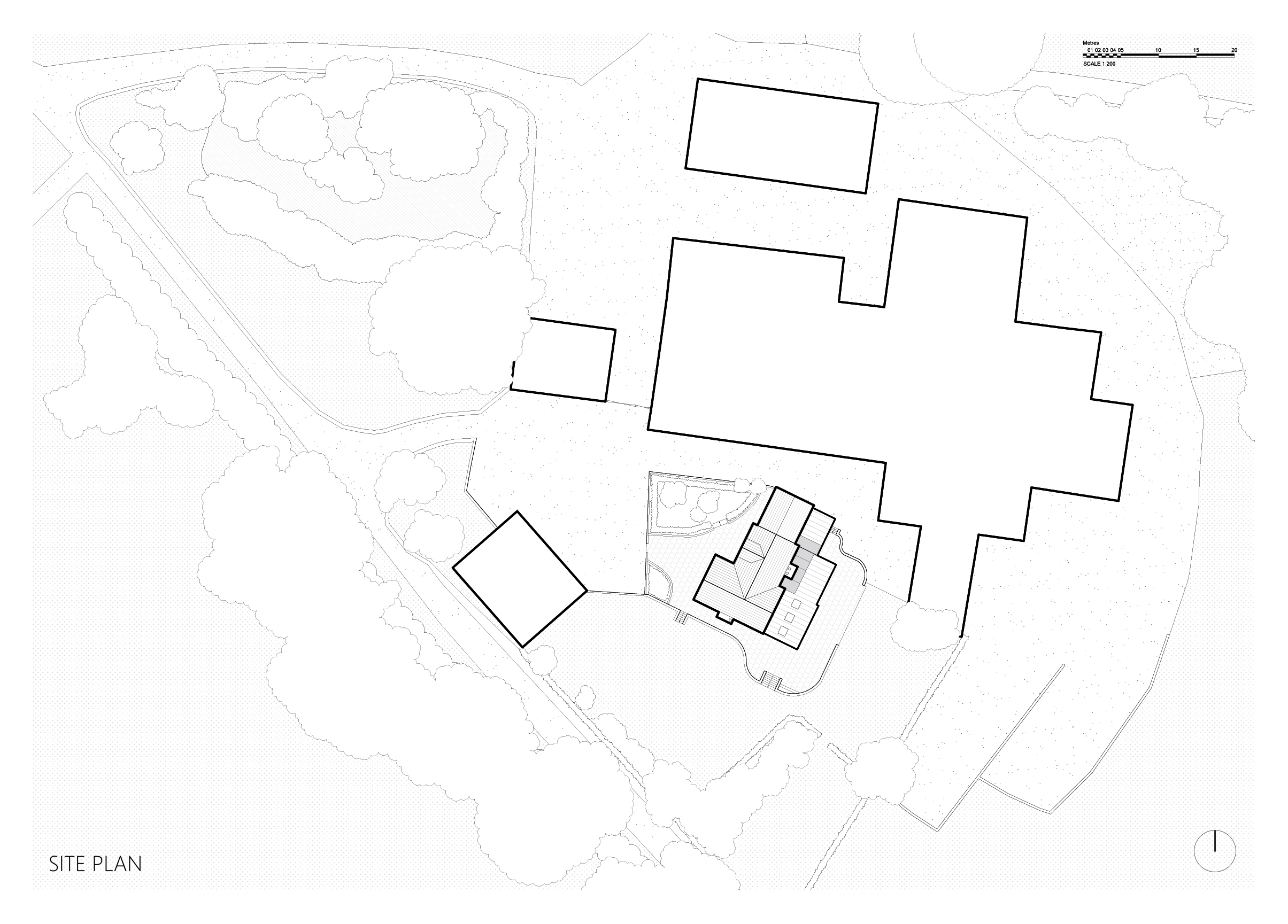

line drawing of the site plan at Cloud House, with a new single storey rear extension to the Grade 2 listed farmhouse, in the setting of agricultural buildings and farmland.
side elevation of a new single storey rear extension to a Grade 2 listed farmhouse with full height glazed openings providing views into highlighting the original exposed stonework with spotlights highlighting key features

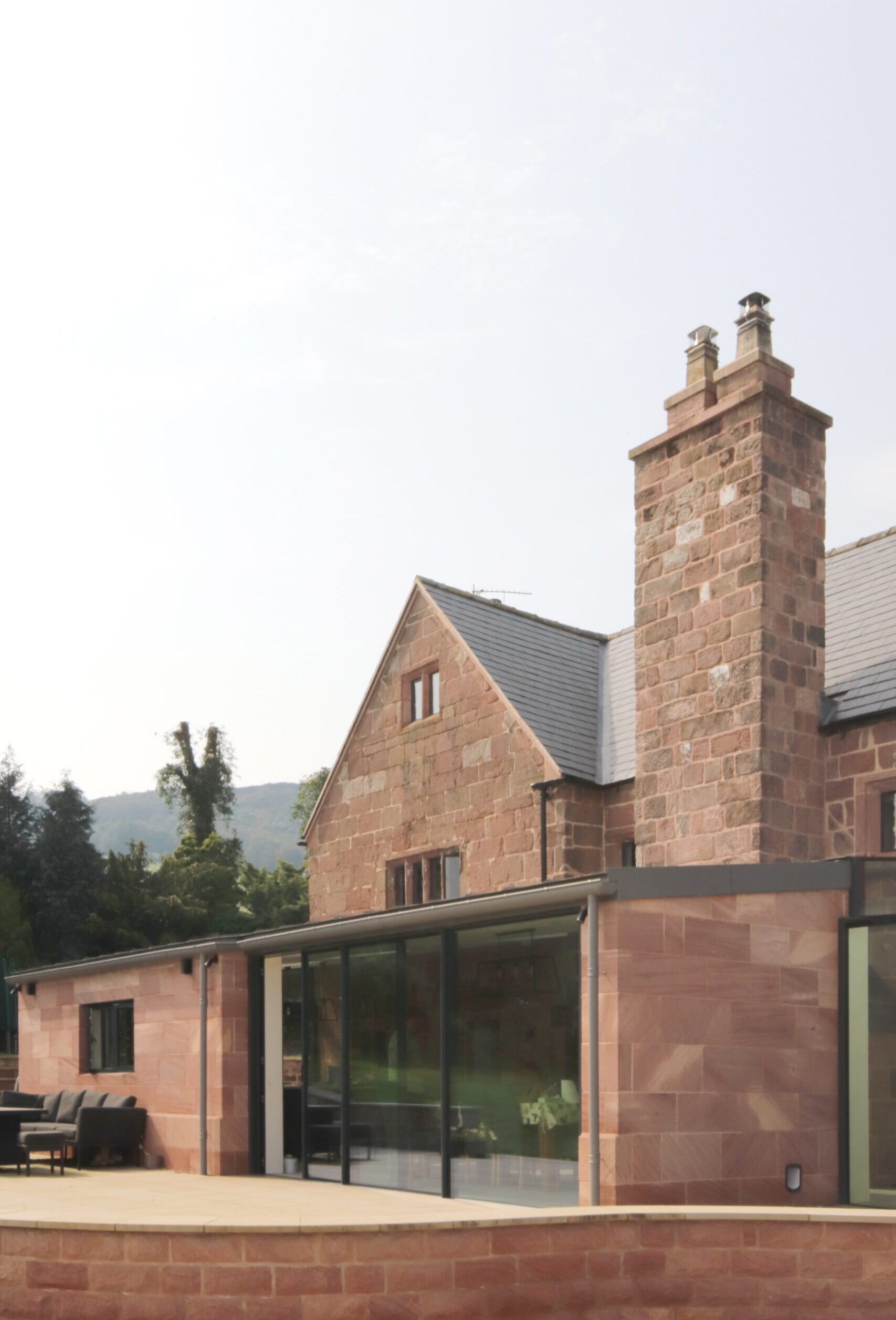

external view of a new rear extension to a Grade 2 listed farmhouse with coursed stone to complement the original stonework and stone mullion windows. Thin framed openings, roof glazing and zinc roof covering creates a modern, sleek extension

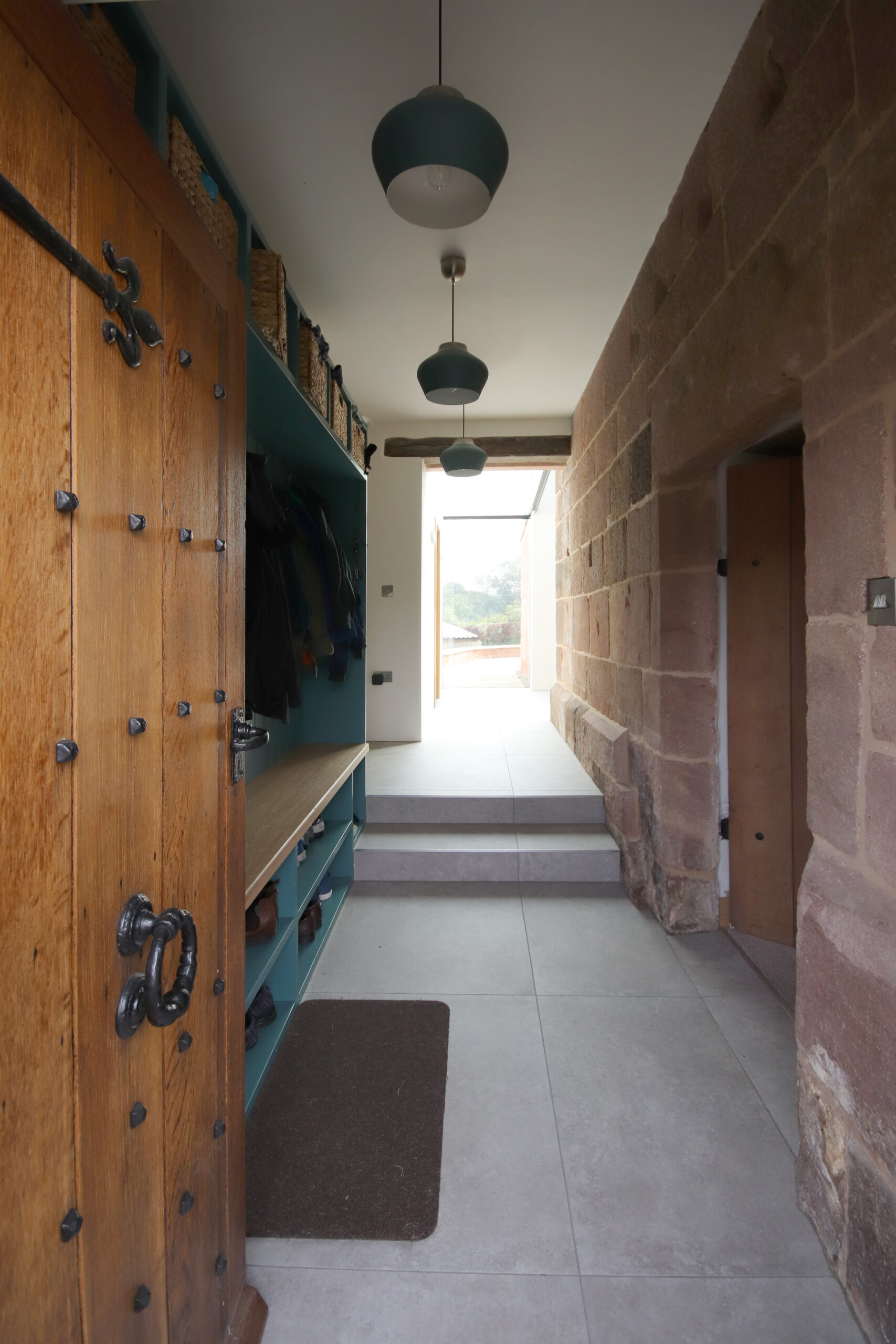

renovated entrance hall to a Grade 2 listed stone farmhouse with the original stonework fabric exposed. built in storage for boots and coats and large pendant light shades

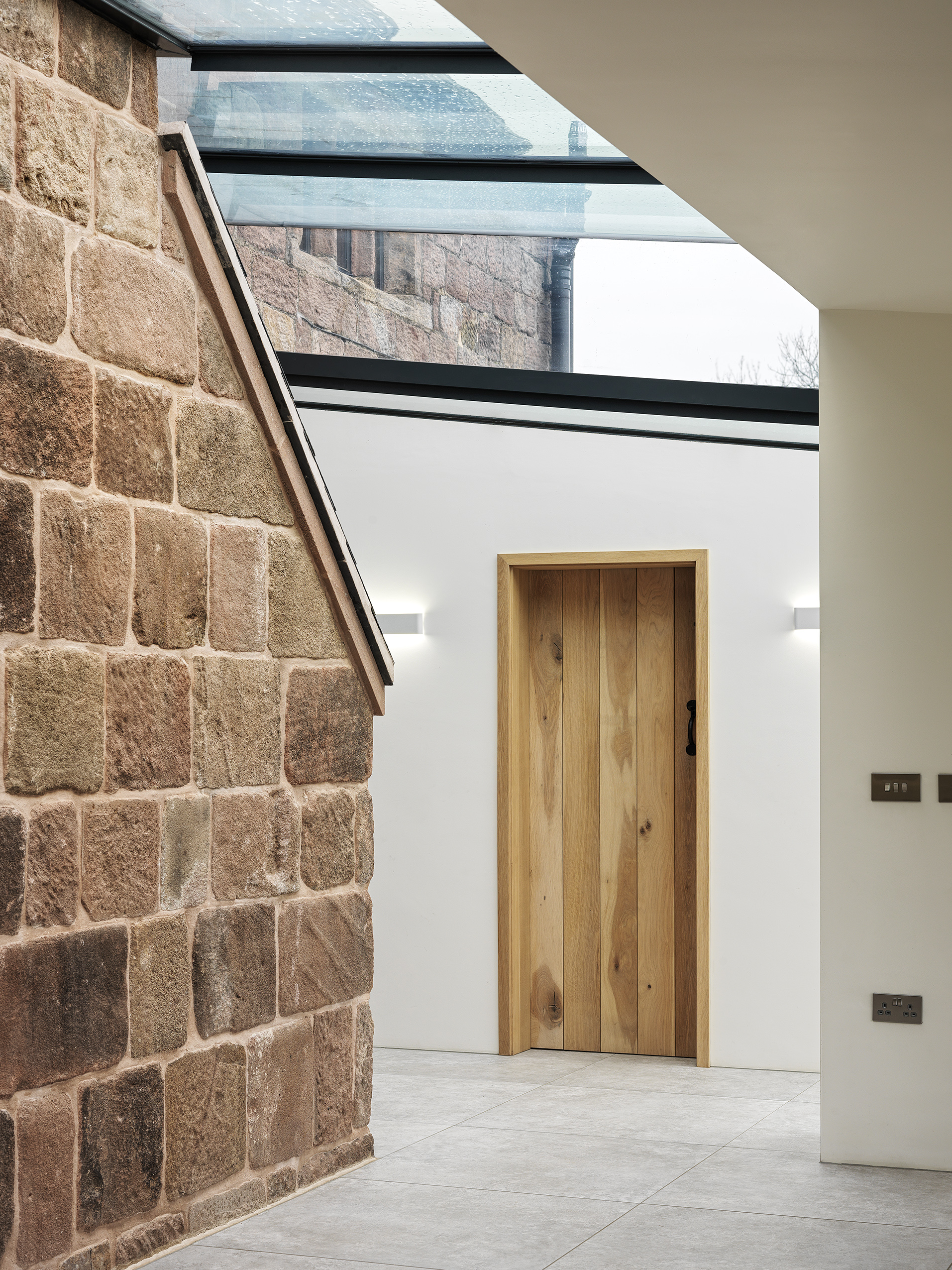

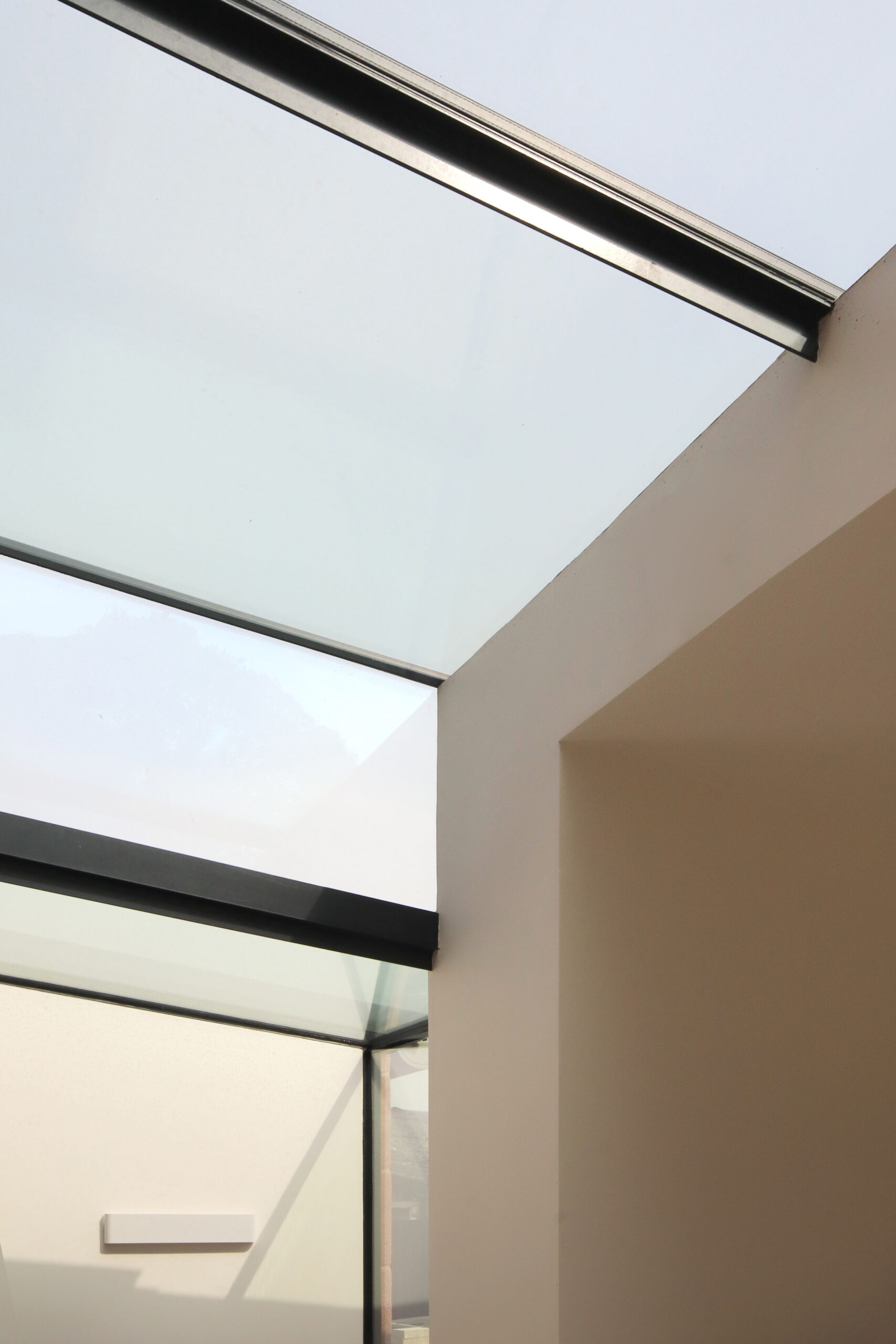

A new rear extension to a Grade 2 listed farmhouse with roof glazing bridging the new modern extension to the original stone fabric of the farmhouse
modern rear extension including kitchen and dining area to a Grade 2 listed stone farmhouse with the original external stonework exposed

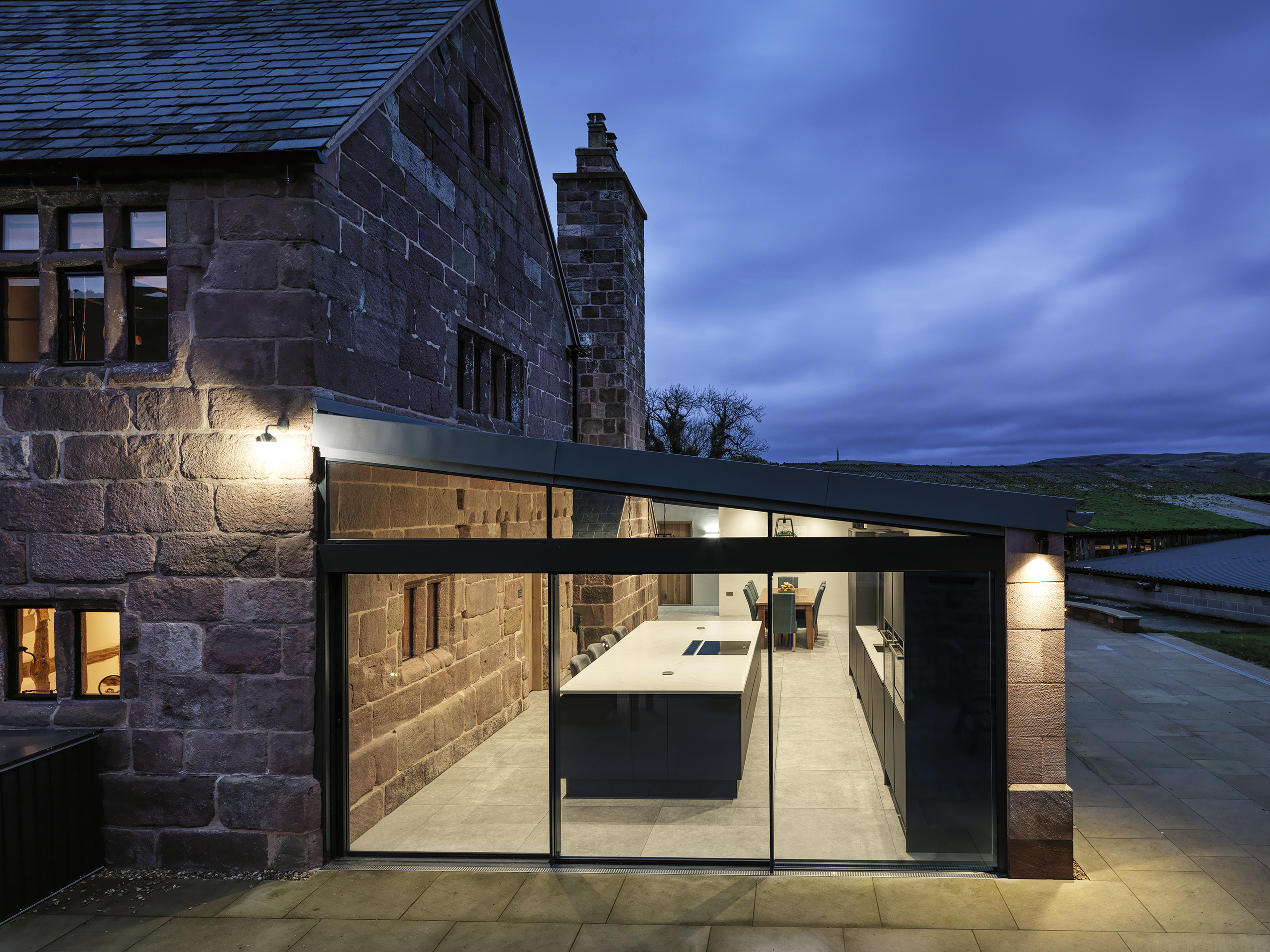

evening shot of a rear extension to a Grade 2 listed farmhouse with large triple pane floor to ceiling sliding doors in the dining area with spotlights highlighting the original stonework walls and chimney.

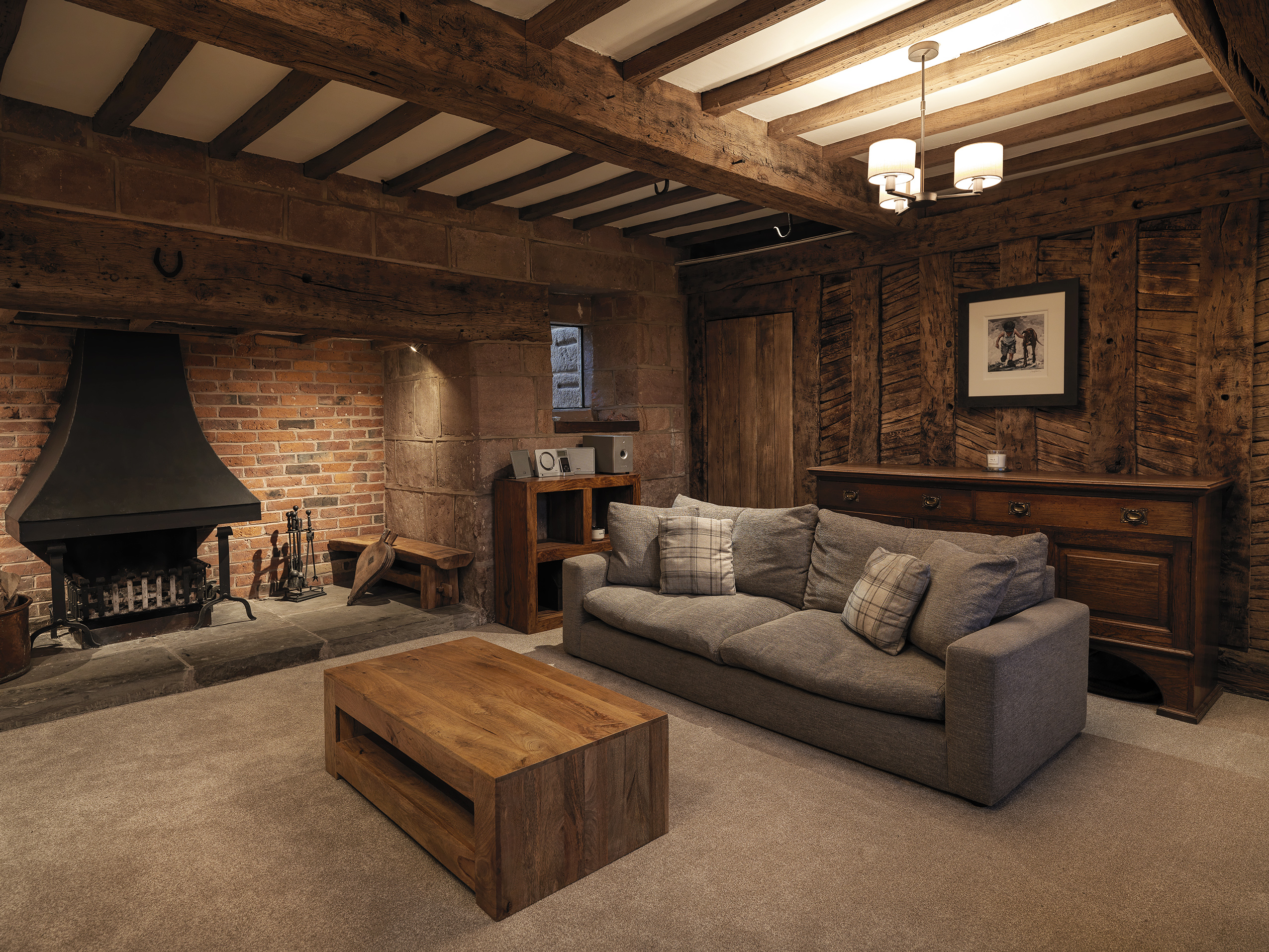

A renovated living room to a Grade 2 listed farmhouse with the original fireplace and timber walls opened up. With exposed timber beams and ceiling joists.

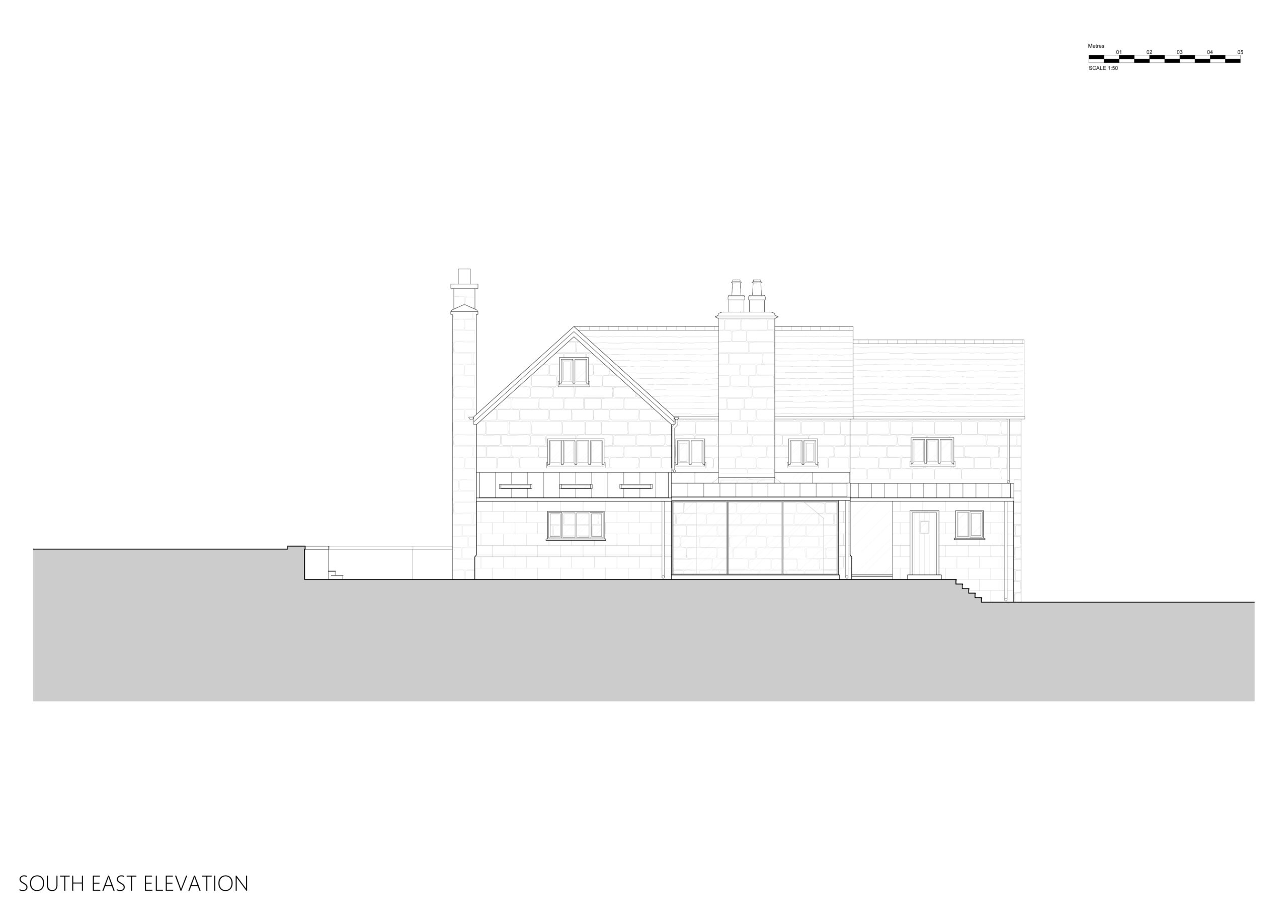

line drawing of the rear elevation at grade 2 listed stone farmhouse. New addition in coursed stone and with low pitch zinc lad roof with rooflights.

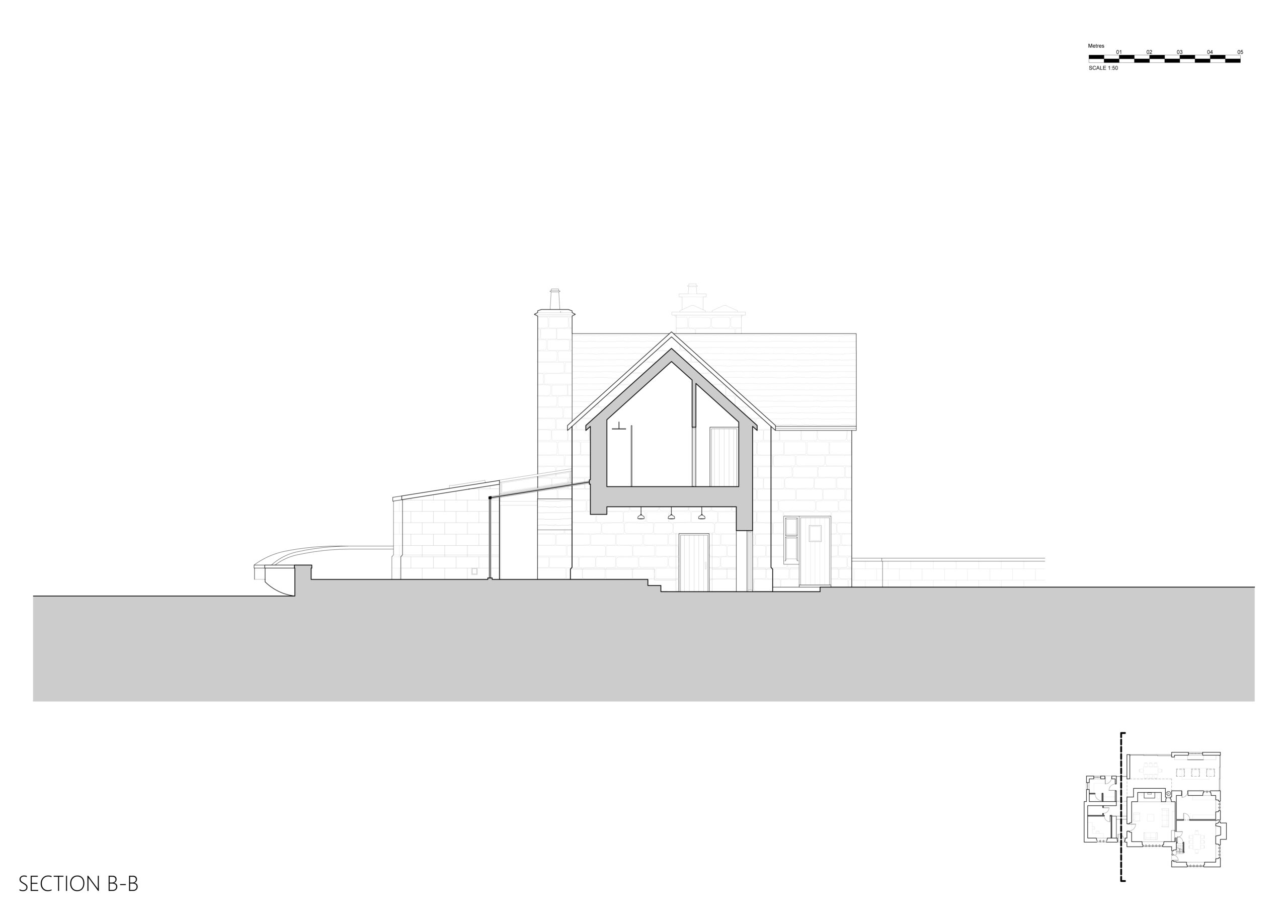

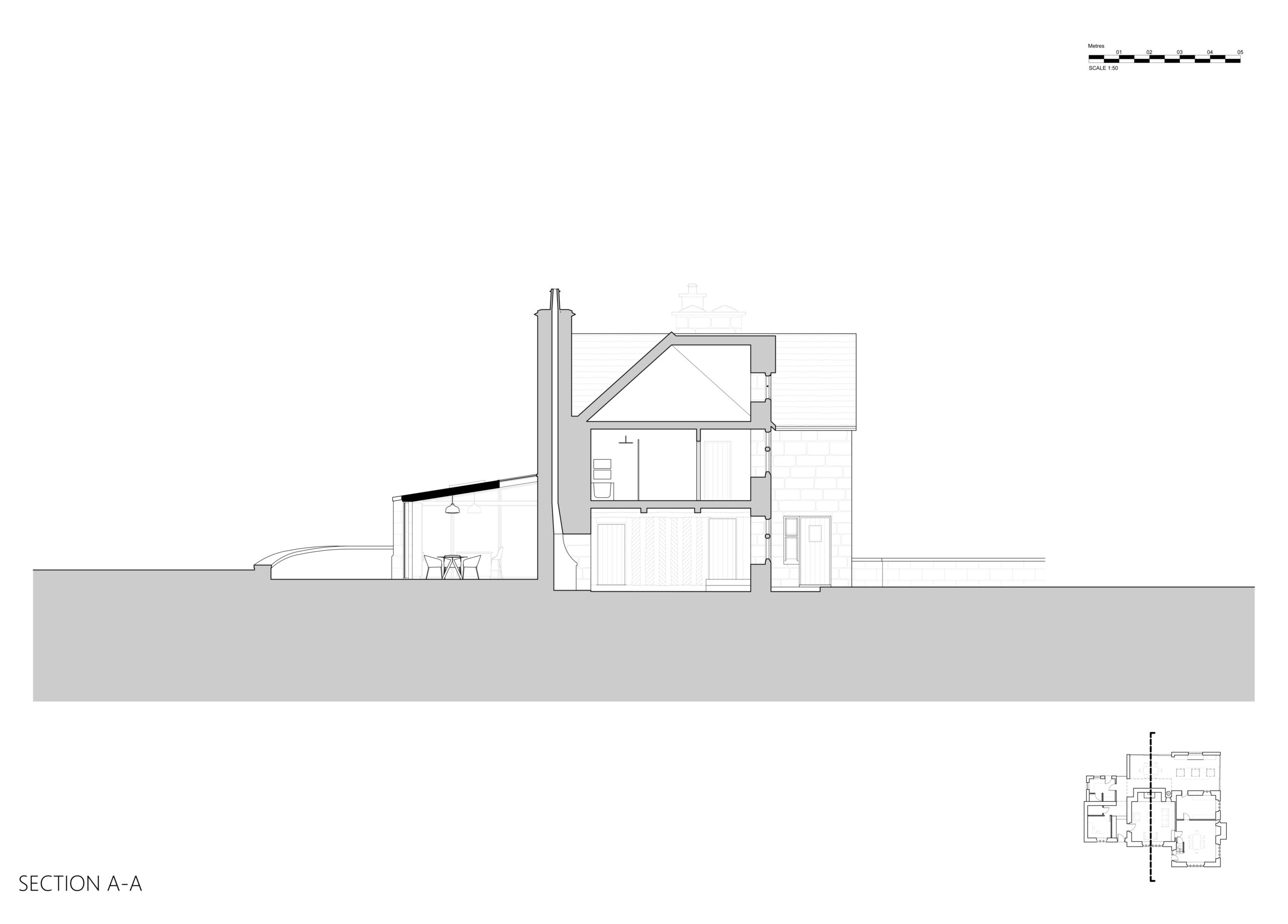

line drawing section of Grade 2 listed stone farmhouse with new rear extension cutting through up and over full height glazing.
line drawing section of Grade 2 listed stone farmhouse with new rear extension cutting through dining area with large glazed sliding doors and roof glazing above at junctions with the existing building.

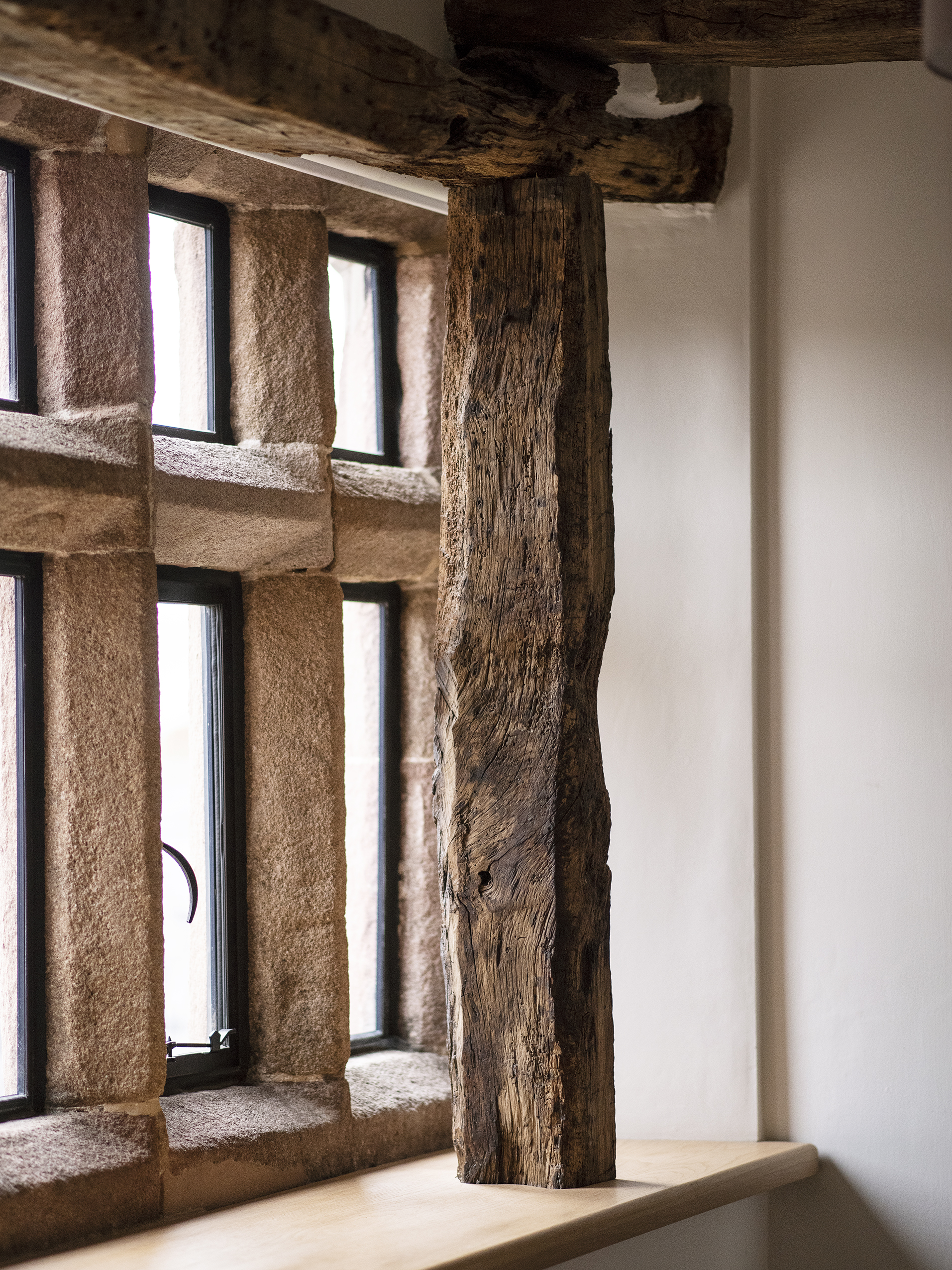

Exposed oak post and original stone mullion windows with new double glazing at a Grade 2 listed farmhouse
Detail of a tiled finish on an exposed stone chimney

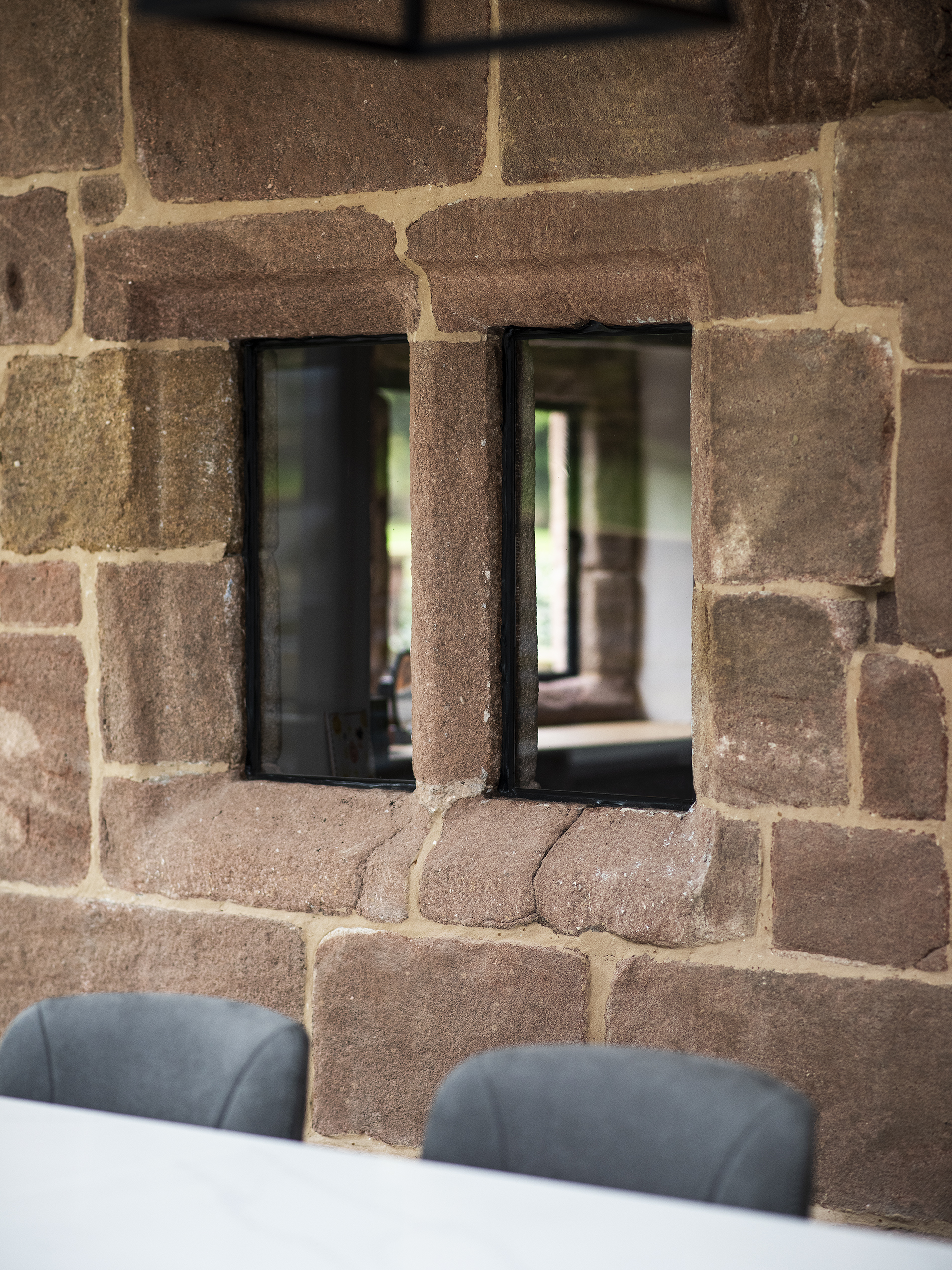

Original stone mullion window with upgraded doubele glazing at a Grade 2 listed farmhouse within a new single storey modern extension.

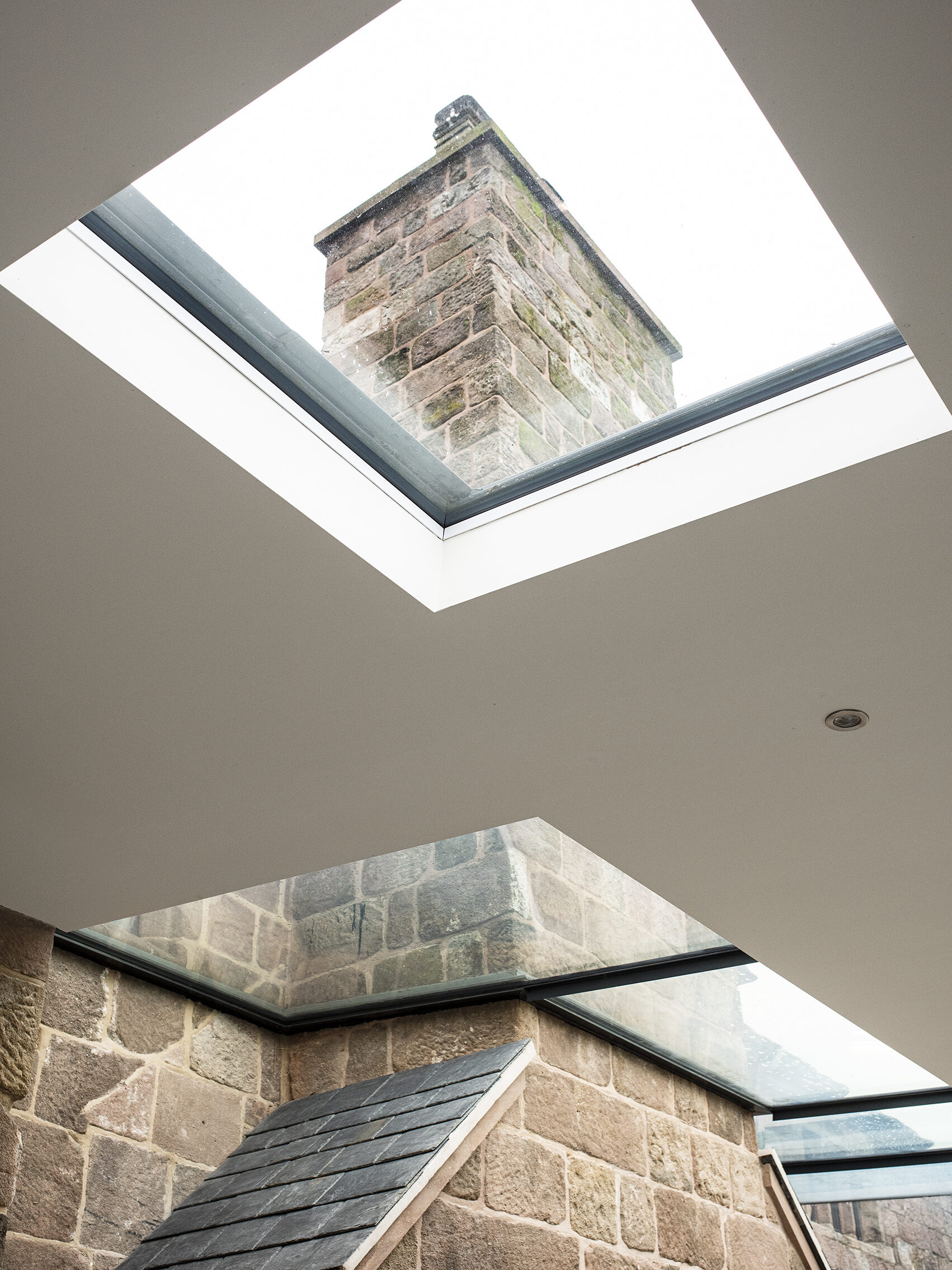

Large rooflights and roof glazing in a new single storey rear extension to a Grade 2 listed farmhouse framing the renovated stone chimney of the original dwelling
New single storey modern stone rear extension to a grade 2 listed stone farmhouse with low pitched zinc cladding and large glazed opening and roof glazing

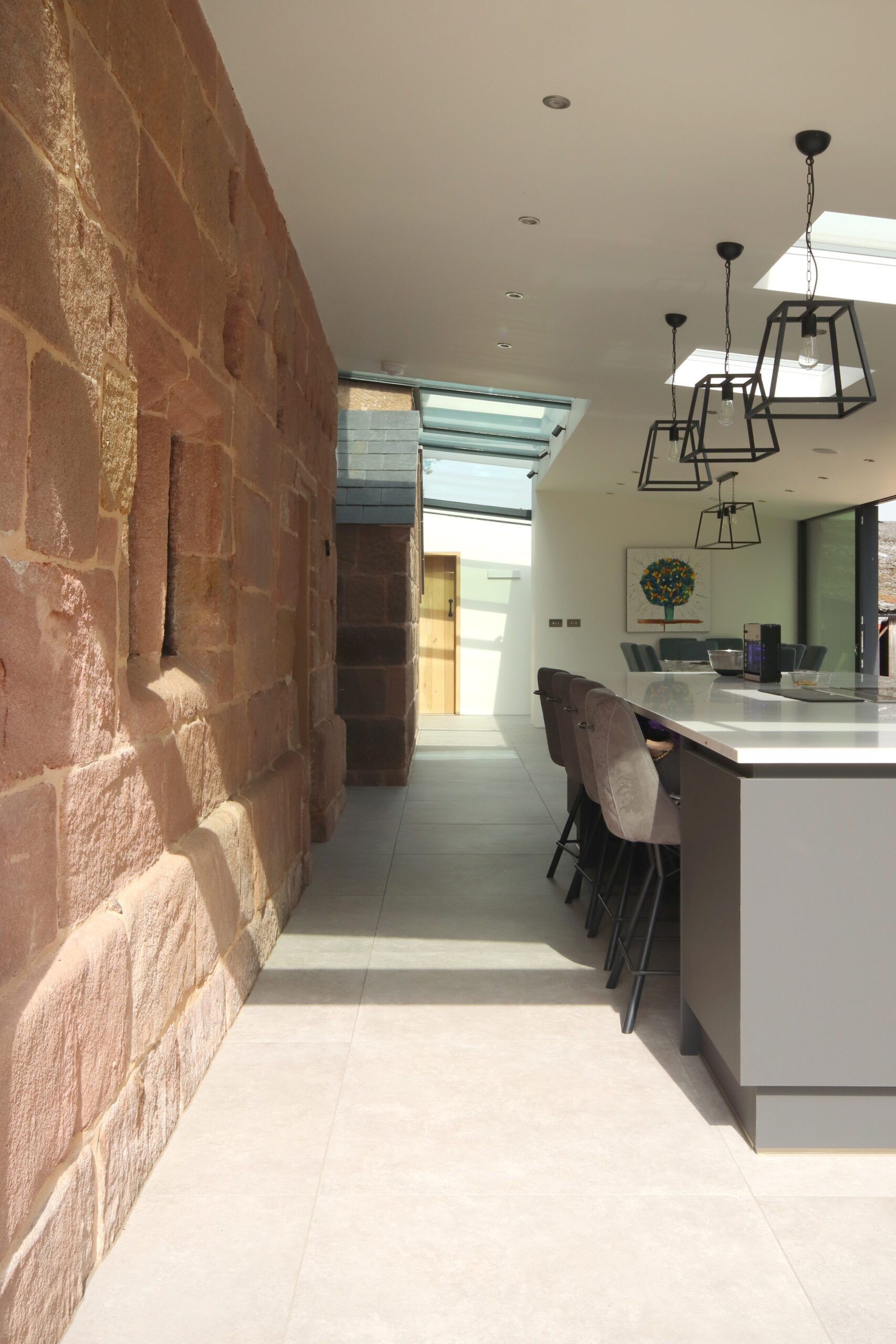

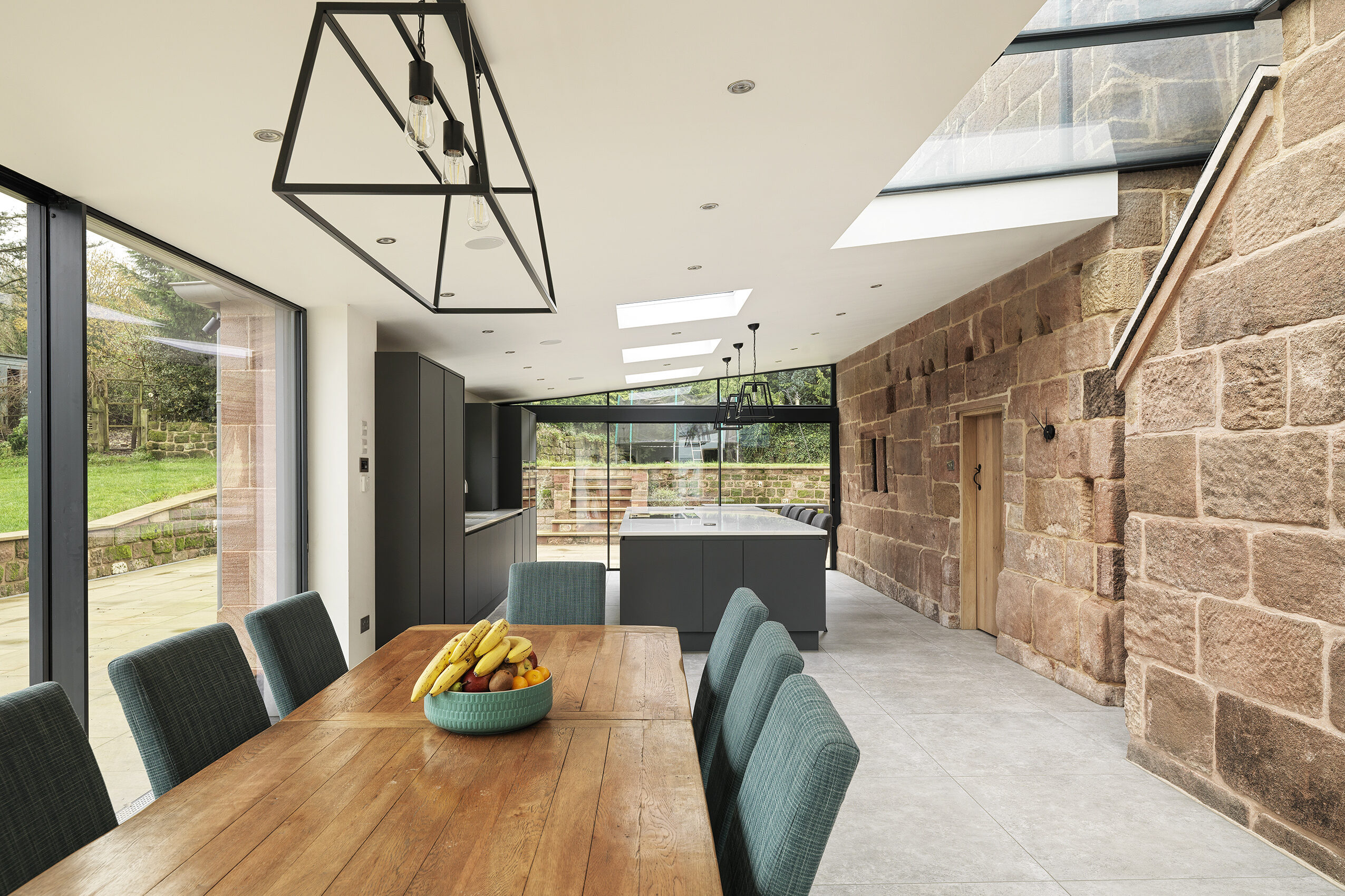

A new kitchen and dining rear extension to a Grade 2 listed farmhouse with large floor to ceiling openings and large roof glazing and rooflights allowing natural light into the new, modern space with sunlight washing over the exposed original stonework

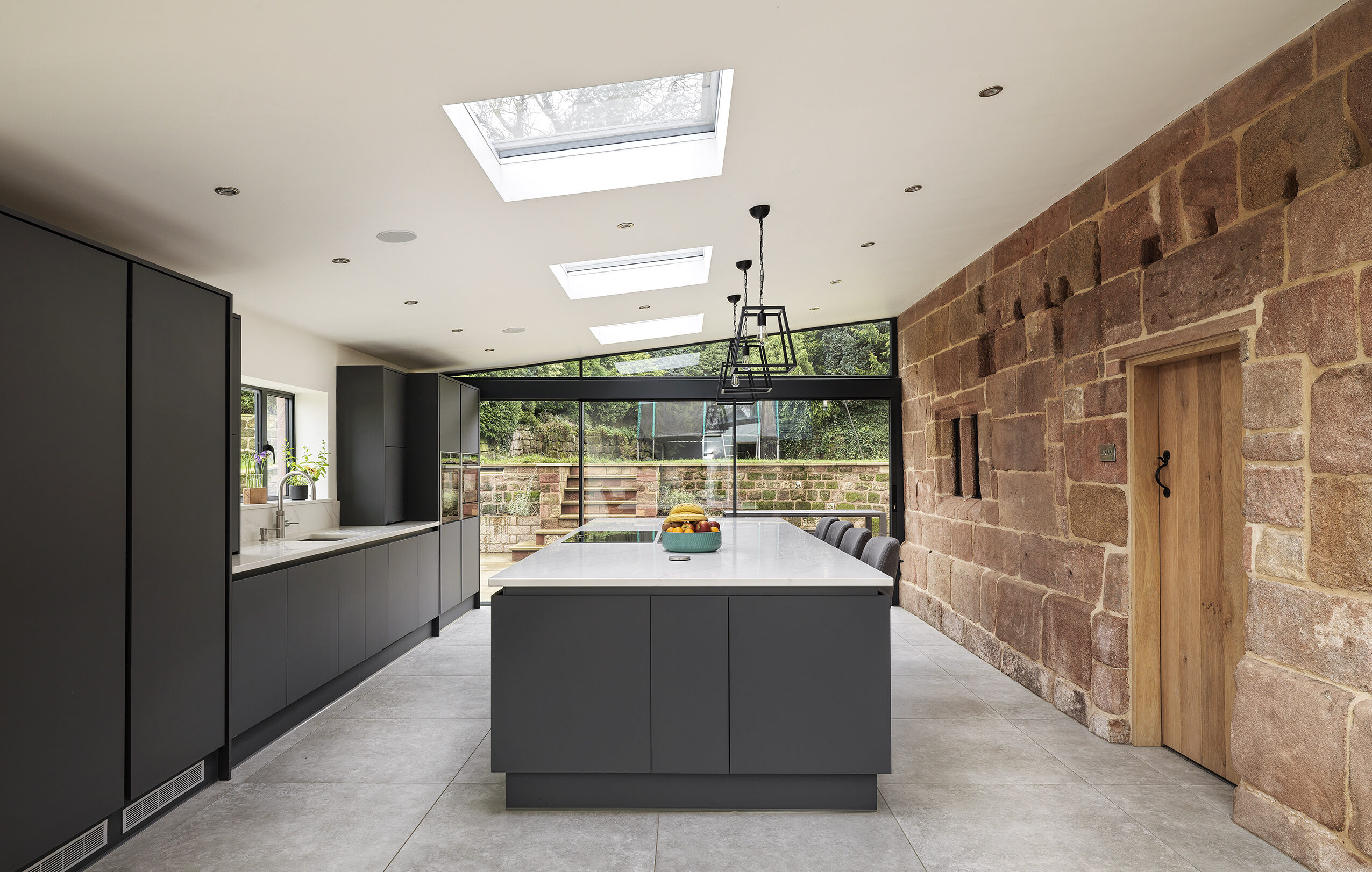

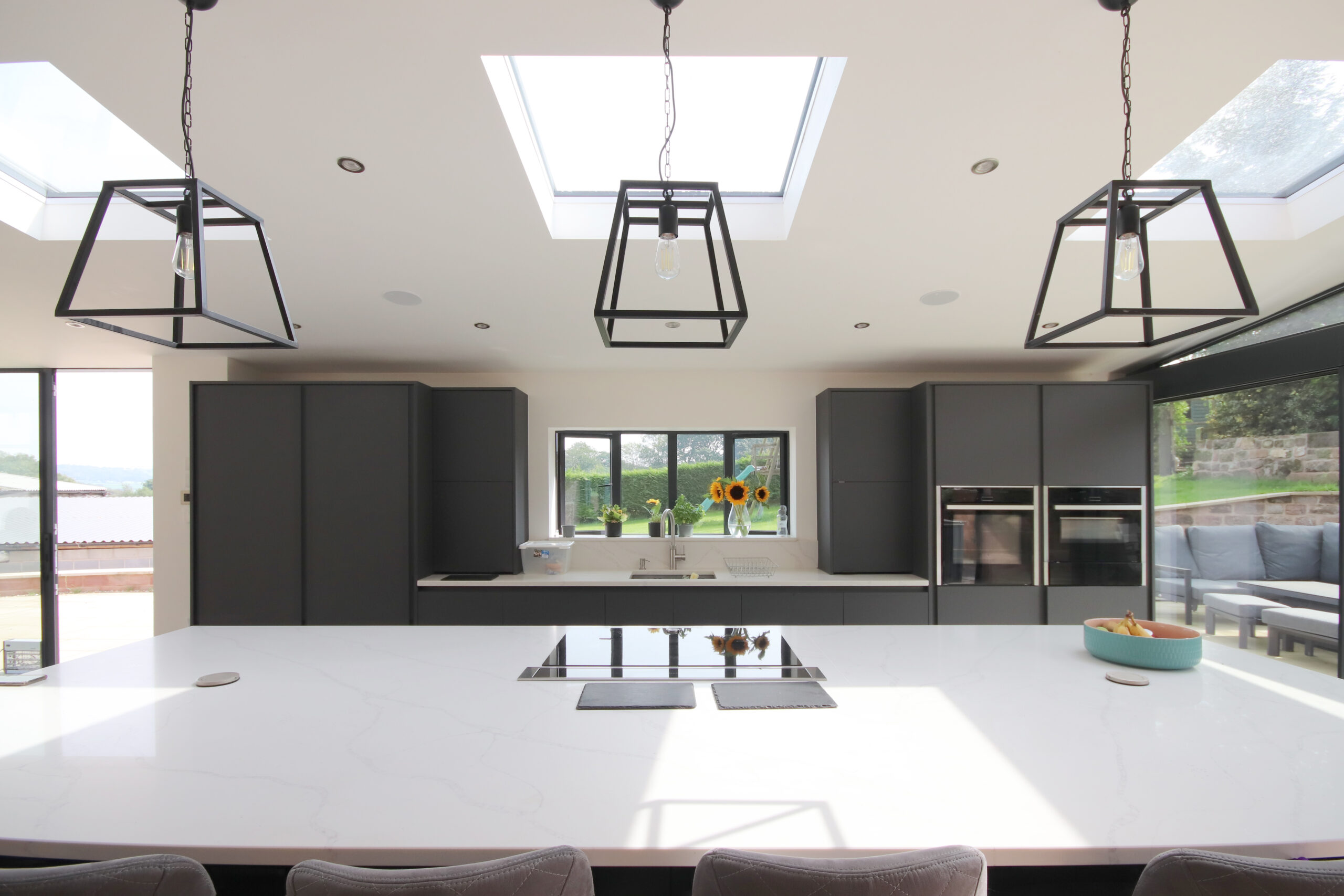

Kitchen in new rear extension to grade 2 listed farmhouse with large opening and views out to the surrounding gardens and farmland beyond. Rooflights also help bring light deeper into the building.
